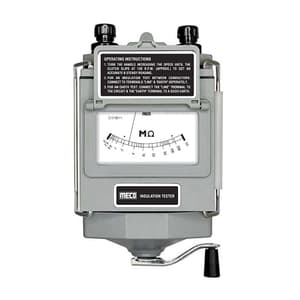

Meco 1000V / 500M Ohms Hand Cranking Type Analog Insulation Tester, HIT 1K-5
Roll over image to zoom zoom_in
- Weight: 950 Grams
- Product Type: Insulation Testers
- Range: 0 - 500MOhm
- Test Voltage: 1000V
- Cranking Speed: 120rpm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹5082.26 (Incl. of all taxes)
₹4307+ ₹775.26 GST (18%)
MRP ₹5067
SAVE 15%
3 Business Days
1 Pcs
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Single Person Hand Driven
- Steady and Accurate Readings
- Steady Output Voltage
- "Guard" Terminal to Prevent Errors Due to Surface Leakage
- Measurement from 10% to 100% of the Insulation Resistance Range
- Rugged Plastic / Metal Case to Prevent the Ingress of Moisture
Applications:
- Electrical / Electronic Equipment (Motors, Transformers, Generators, Panles, Machines, etc)
- Cables for Communication / Telecom Networks
- Industrial, Commercial & Residential Installations
- Electrical Cables for Distribution Networks
- House Hold Appliances (Washing Machines, Mixer, Toaster etc.)
Package Content:
- Insulation Tester
- Test and Calibration Certificate
- 1x Pair of Crocodile / Alligator Test Leads (Red & Black)
- Instruction Manual
- 1x Carrying Case
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.IN.00165 |
|---|---|
| Product Type | Insulation Testers |
| Model No | HIT1K-5 |
| Range | 0 - 500MOhm |
| Test Voltage | 1000V |
| Accuracy | ±1% FS |
| Operating Temperature | 0° to 50°C |
| Storage Temperature | -10°C to 60°C |
| Relative Humidity | 80% Max. |
| Insulation Resistance | More than 20M Ohm at 500V Between Circuit & Case |
| Cranking Speed | 120rpm |
| Inclination Variation | ± 1% FS at 10°C Inclination |
| Temperature Variation | ±0.8% FS for every ± 10°C Change of Ambient Temperature |
| External Magnetic | ± 2.5%FS to Magnetic |
| Field Influence | Field Defect of 5 A/M (Ampere Per Meter) |
| Dimensions (mm) | 210 x 120 x 150 mm |
