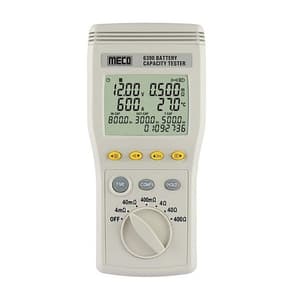

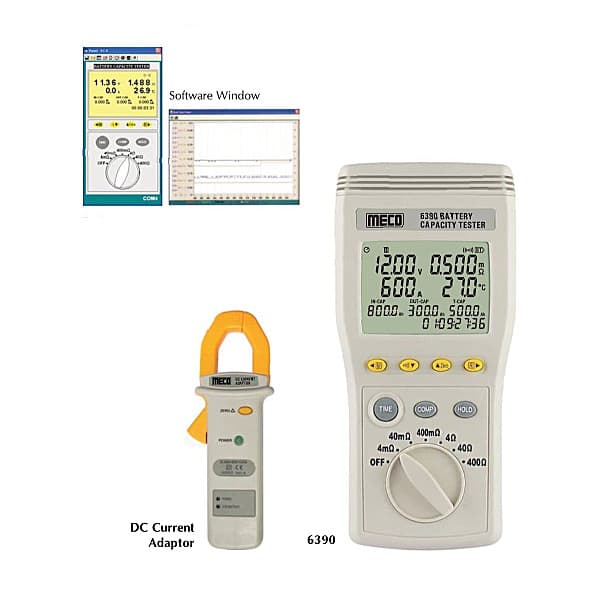

Battery Capacity (Impedence) Tester With DC Clamp Meter Upto 1200 Ah & 60 V DC with PC Communication with software, Comparator Function, Measures Online Imepdence / Resitance and Open Cicuit Voltage, Load Circuit, Terminal Temperature and SOC

Features & Benefits:

• Memory & Read Function
• Right Device to know the TRUE -LIFE of Battery Capacity (Resistive / Voltage) Simultaneously Measure
• On - Line Testing without shutting down battery
• Built - in Comparator Function
• Rates Conditions as PASS, WARNING or FAIL
• Datalogging Memory Function
• Compact and lightweight
• RS-232 Interface & Software
• Auto Power Off
• Power Supply Six 1.5V AA Size Batteries
• Battery Life 7 Hours
• Dimensions / Weight 250 x 100 x 45 mm (approx.) / 490gms Including Batteries (approx.)

Accessories:

• Alligator Clip Type Test Lead with Temperature
• Sensor x 1
• Pin Type Test Lead x 1
• DC Current Adaptor x 1
• Zero Adjustment Board x 1
• Instruction Manual x 1
• 1.5V AA Alkaline Batteries x 6 (fitted in)
• AC Adaptor x 1
• Optical RS232 Cable x 1
• PC Software Disk x 1
• Carrying Bag x 1

Specifications:

Battey Types Tested UPS Batteries Compact storage batteries Backup battery Battery pack Biobattery Car battery CMOS battery Electric vehicle battery Flow battery Inverter battery Lantern battery Nanobatteries Photoflash battery Thin film rechargeable lithium battery Traction battery Watch battery Water-activated battery Wet cell Alkali and lead-acid batteries Motor Cycle (6V/12V : 2 ~ 20Ah), Car (12V : 21 ~ 80Ah), Truck (12V : 83 ~ 160Ah) Household Appliances [(9V : upto 625 mAh), (AA : upto 2850 mAh), (AAA : upto 1250 mAh), (C : upto 8350 mAh), (D : upto 20500 mAh)], Lithium Notebook Battery : [(14.8V : 3600 ~ 4800 mAh),(11.1V : 3600 ~ 7200 mAh)], Lithium Digital Camera Battery : (3.7V : 650 ~ 1350 mAh), Lithium Cordless Phone Battery : (3.7V : 800 ~ 1250 mAh) All types of Lead Acid batteries

Resistance Range : 4mΩ, 40mΩ, 400mΩ, 4Ω, 40Ω, 400Ω Resolution : 1μΩ, 10μΩ, 100μΩ, 1mΩ, 10mΩ, 100mΩ Accuracy : ±(1% Reading + 8 Digits) on all Ranges

DC Voltage Range : 6V, 60V Resolution : 1mV, 10mV Accuracy : ±(0.1% Reading + 6 Digits)

DC Current Range : 600A Resolution : 0.01A, 0.1A Accuracy : ±(2% rdg + 2 dgt)

Temperature Range : -20°C to 60°C (-4°F to 140°F); 0.1 Resolution : °C / 0.1°F Accuracy : ± 1°C / ± 1.8°F

Dimensions / Weight 198 x 94 x 49 mm (approx.) / 530 gms Including Battery (approx.)

Data Logging Manual Datalogging : 999 Sets (Can be read by Meter & Download by PC) Auto Datalogging : Micro SD card 4GB (Max. 99 Blocks)

Measurement Condition Current : Approx. 40mA, 4mA, 400mA, 40mA, 4mA Frequency : 1KHz± 30Hz

Comparator Setting : Resistance Upper and Lower Limits and Voltage (Threshold) Upper and Lower Limit Memory : 99 Sets of Values

Operating Environment 0°C to 40°C (32°F to 104°F), 80% RH or Less, Non-Condensing

Battery Capacity 0 to 1200Ah

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
