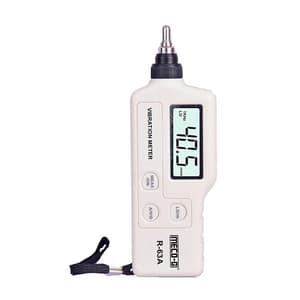

“MECO-G” Vibration Meter model R-63A is designed using piezoelectric effect of artificial polarized ceramics. This unit can be used to monitor various types of mechanical vibrations like rotating and reciprocating machines.

This instrument can measure acceleration, velocity and displacement in the mechanical manufacturing process, metallurgy, general aviation field etc.


Features:

• Simple to use for measurement, the structure is compact, portable for carrying
• Visually displays the measurement value and state.
• Acceleration, velocity and displacement measurement
• Different vibration frequency selection.
• High sensitivity probe for accurate measurement with long and short probe head, each one is suitable for different measurement situation.
• Equipped with AC signal output interface.
• Low Power Indication
• Auto Power-Off
• LCD Back-light.

Technical Specifications:

Vibration Pickup	Piezoelectric ceramic accelerometer (shear-type)
Measurement range of Acceleration	0.1~199.9 mm/s² peak
Measurement range of Velocity	0.1~199.9 mm/s rms
Measurement range of Displacement	0.001~1.999 mm p-p. Velocity and displacement range is limited by acceleration 199.9m/s²
Measurement accuracy	± (5%+2Digits)
Measurement frequency of acceleration	10Hz~1KHz (LO) / 1KHz - 15KHz (HI)
Measurement frequency of velocity	10Hz~1KHz (LO)
Measurement frequency of displacement	10Hz~1KHz (LO)



Display Specifications:

• Back-light indication: The back-light will be on for 7 seconds upon the operation of the button
• Measurement Data
• High Frequency
• 1KHz Frequency
• Low Frequency
• When taking measurement of acceleration, the LCD displays the acceleration unit = m/s
• When taking measurement of velocity, the LCD displays the velocity unit = mm/s
• When taking measurement of displacement, the LCD displays the displacement unit = mm.

What's Included In This Package:

• 1x R-63A Meco-G Vibration Meter
• 1x Long And short probe head
• 1x Users Manual
• 1x Battery
• 1x Carrying Case
