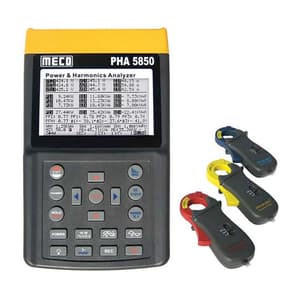

Power and Harmonics Analyzer - Complete Portable Kit consisting of PHA 5850, 3 Pcs (R, Y, B) Clamp-On CT's Set " B" Range - 10 / 100 / 1000A AC, Voltage Test Leads with Crocodile Clips - 4 Pcs (R, Y, B, N), Carrying Bag, 8 Pcs (1.5V DC) Batteries, External DC Adaptor, Software CD, Users & Software Manual, Optical Isolated USB Cable. PHA 5850 Measures - Single / Three Phase System, TRUE RMS Value, Harmonics (V & A) up to 99th Order, THD, Energy, Active / Reactive / Apparent Power, Power Factor, Maximum Demand, Phase Angle, Graphic Phasor Diagram, Waveform with Peak Value. Built-in Memory (512K), Programmable CTR / PTR, User-Friendly Software. Jaw Opening: Suitable for Cable / Conductor up to 55mm Diameter / Bus Bar 64 x 24mm

MECO Power and Harmonics Analyser Model PHA-5850 can Analyze, Measure, Monitor &Data Log values of Power Quality & Consumption (Energy). Capable of analyzing IT standby power consumption to the maximum demand of factory. It comes with a user friendly application software that increases the utility & performance of this instrument. The analyzer is ideal for an any Engineer / Inspector for carrying out Periodic Visits, Maintainance of Plant, Vigilance checks, Surveys and Energy Audits for checking at Industrial and Consumers end.

Features & Benefits:

• Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems
• Display of 35 Parameters in one screen (3P4W)
• Programmable CT (1 to 600) and PT (1 to 3000) Ratios
• RMS, PEAK Value & Crest Factor
• True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR)
• Power Factor, Phase Angle ( ? ) & Energy (WH, KWH, KVARH, PFH)
• Average / Maximum Demand (KW, MW, KVA, MVA) with Progrmmable Period
• Display of 50 Harmonics in one Screen with Wave form with Peak value (1024 Sample / Period)
• Analysis of total Harmonics Destortion (THD-F)
• Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE)
• Built in timer & Calender for Data Logging
• 512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems)
• Optical Isolated RS-232C ~ USB Interface
• Calculated Unbalanced Current through Neutral line
• Graphic Phasor Diagram
• Facility to retrieve Power Data & Harmonics on Meter Screen
• Software for easy download of Recorded Data & Transient events

Accessories:

• Voltage Test Leads x 4 (3 meter long )
• Alligator Clips (Voltage) x 4 (R.Y.B.N.)
• Carrying Bag x 1
• Batteries 1.5V DC x 8
• External DC Adaptor x 1
• Software CD x 1
• Users Manual x 1
• Software Manual x 1
• Optical USB Cable x 1
• Current Clamps x 3 (Any One CT Set)

General Specifications:

• Battery Type: 1.5V SUM-3 x 8
• External DC Input: Power supply adapter 12 Volts. DC
• Display: Dot Matrix LCD (240x128) with backlight
• LCD Update Rate: 1 time / second
• Power Consumption: 140mA (approx.)
• No. Of Samples: 1024 samples/period
• Data Logging Files: 85
• Max. File Capacity: 17474 records (3P4W, 3P3W) / 26210 records (1P3W) / 52420 records (1P2W) / 4096 records (50 Harmonics / record)
• Sampling Time: 2 to 3000 seconds for data logging
• Low battery Indication: B
• Overload Indication: OL
• Operating Condition: -10°C to 50°C < 85% RH
• Storage Condition: -20°C to 60°C < 75% RH
• Dimension: 257 x 155 x 57 mm

Specifications:

AC Current (50Hz or 60Hz, Auto Range, True RMS, Crest Factor<4, CT=1)


PHA-5850B (1000A) (Overload Protection AC 2000A)
Range	Resolution	Accuracy of readings
10.00A	0.001A / 0.01A	-
5A - 100.0A	0.01A / 0.1A	± 0.5% ± 0.5A
50A - 1000.0A	0.1A / 1A	± 0.5% ± 5A



Harmonic of AC Voltage in Percentage
Range	Resolution in %	Accuracy in %
1 - 20th	0.1%	±2%
21 - 49th		4% of reading ±2.0%
50 - 99th		6% of reading ±2.0%



Harmonic of AC Current in Percentage
Range	Resolution in %	Accuracy in %
1 - 20th	0.1%	±2%
21 - 49th		± 4% of reading ± 2.0%
50 - 99th		± 6% of reading ± 2.0%



AC Watt (50Hz or 60Hz, PF 0.5~1, CT=1, continuous waveform)
Range	Resolution	Accuracy
5.0 - 999.9W	0.1W	±1% ±0.8W
1.000 - 9.999KW	0.001KW	±1% ±8W
10.00 - 99.99KW	0.01KW	±1% ±80W
100.0 - 999.9KW	0.1KW	±1% ±0.8KW
1000 - 9999KW	1KW	±1% ±8KW
0.000 - 9.999MW	0.001MW	± 1% ± 80KW



Power Factor
Range	Resolution	Accuracy
0.00 - 1.00	0.01	± 0.04



AC Voltage (50Hz or 60Hz, Auto Range, True RMS,Crest Factor<4, Input Impedance 10M , VT (PT) = 1, Overload Protection AC 800V)
Range	Resolution	Accuracy
20.0V - 500.0V (Phase to Neutral)	0.1V	±0.5% ± 5dgts
20.0V - 600.0V (Phase to Phase)
