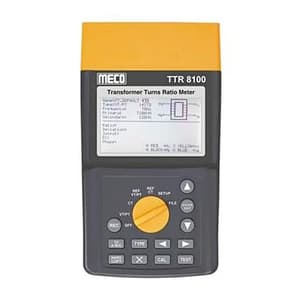

Transformer Turns Ratio Meter with PC Communication Software, Measurement of 1P / 3P Current / Voltage, Transformer's Turns Ratio, Excitation Voltage, Current, Phase Angle and Deviation. Live Test Points, Short Circuit, Open Circuit, Reverse Polarity. VTR / PTR : 0.8000 - 10000 (Auto ranging), CTR : 0.8000 to 2000.0 (Auto ranging)

Features & Benefits:

• Measurement of 1 Φ and 3 Φ Transformer / VT / CT Turns Ratio
• VT / PT Ratio 0.8 ~ 2000, Ct Raio 0.8 ~ 2000
• Graphical and Literal Illustration of Measurements and connections with Large Back - Lighted Dot Matrix 240 x 128 LCD
• Displays Turns Ratio, Deviation, Secondary Output, Excitation Voltage and Current, Phase Angle and Nameplate. Transformer VT / CT Values in one page for easy quality interpretation
• Check for Live Test Points, Short Circuit, Open Circuit and Reverse Polarity before each measurement
• Store 4096 Files of Transofrmer Nameplate Values (VT / PT / CT 1 Φ / 3Φ, Test Frequency, Primary and Secondary Voltages or Ratio, RCF) and Measuring Data.
• Ten Test Frquencies (50 ~ 400 Hz)
• 9 Types of 3 Φ Winding Connection pre - installed
• Wireless Blue Tooth Communication with PC
• Select Filter to Remove Field noise (Slow, Normal, Fast)
• Record with Date and Time Stamp
• Powerful Lithium Battery (3400mAH) with built - in Charging Circuit
• User Programmable RCF (Reference Correction Factor, 0.99 ~ 1.01) to Correct Accuracy within 1% Error
• PC Application Software Included
• Friendly File System for Easy On - Site Data Retrieval and Nameplate Values Management

Accessories:

• Test Leads x 1 Pair,
• Alligator Clips x 4,
• Rechargeable Lithium Battery x 1
• Instruction Manual x 1
• AC Adaptor x 1
• Power Cord x 1
• Software CD and Manual x 1
• Carrying Bag x 1

Specifications:

Battery Charger: Universal Input (90 to 264 Vrms Input)

Battery Life: 10Hrs of Continuous Operation

Charging Time:<4Hrs

CTR (Auto Ranging): 0.8000 to 2000 CT

Data Storage: 4096 Files Each (VTM, CTM, VTR, CTR, BMP)

Display: 5 Inch Large Dot Matrix LCD Display With Backlight

Exitation Current Display: 0 to 1000 mA, Accuracy +/-2 Percent mA

Exitation Frequency:  50, 55, 60, 70, 100, 120, 200, 240, 300, 400 Hz

Exitation Signal: VT/PT Mode 34 Vrms Max, CT Mode: Auto Mode 0 to 1A, 0.1 to 20 Vrms

Measurement Method: ANSI/IEEE C57.12.90 and IEC 600076.1

Power Source: Rechargeable Lithium Battery, 3400mAh
