Metravi 0 – 5 PSI Range Differential Pressure Manometer With PC Interface, PM-01

Name: Metravi 0 – 5 PSI Range Differential Pressure Manometer With PC Interface, PM-01
Brand: Metravi
SKU: ME.NO.MA.00008
Price: 10699 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Metravi

SKU: ME.NO.MA.00008

Model: PM01

Roll over image to zoom zoom_in

Visit Metravi Store keyboard_double_arrow_right

Key Features

Product Type: Manometer
Display: Dual LCD
Accuracy: ±0.3% FSO
Repeatability: ±0.2% (Max. +/-0.5% FSO)
Pressure Range: +5 psi

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹12624.82 (Incl. of all taxes)

₹10699+ ₹1925.82 GST (18%)

MRP ₹15734

SAVE 32%

Dispatch: 5 Business Days

Items in Pack: 1 Pcs

HSN Code: 90262000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

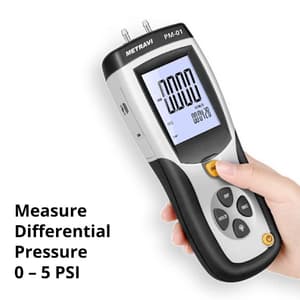

This Metravi PM-01 Digital Differential Pressure Manometer is used to measure Differential Pressure in the range of 0 – 5 PSI. It also measures in various units like inH2O, PSI, bar, mbar, kPa, inHg, mmHg, OZin2, ftH2O, cmH2O, kgcm2. It features Data Hold, Auto Power Off and RS-232 PC Interface facility.

Applications:

Static Pressure Measurement monitoring in duct or plenum.
For adjusting efficient, combustion.
To measure gas pressure to heating burner.
For adjusting pressure drop in dust scrubber.
For gauging damper position in duct.
For sensing loss of lubricating oil to saw bled.
To measure / monitor negative pressure during asbestos removal operation.
Measure change in air pressure in textile equipment.
To measure pressurisation of rooms.
To measure air velocity in duct.
For measuring air velocity in Orifice Plate.
To measure differential pressure across fan.
To indicate filter condition in any close process.
To monitor draft in smoke, stack.
To monitor air flow in oven.
To measure wind speed in duct or process.
To measure test pressure in air flow.
To measure air velocity round the clock.
To measure low flow of stack gas.
For accurate measurement of stack gas velocity.
To show pressure and accurate during kidney dialysis.
In gasoline vapour recovery system.
To measure tank level of liquid.
To control yarn size from carding machine.
To measure level of liquid nitrogen in tank.
To measure drop across Orifice Plate.
To indicate condition of filter in liquid pipe line.
To measure water florid.
Can be used as Orifice Meter on liquid pipe line.
In system to measure integrity of auto fuel system.
For leak testing in containers or assembly.
To monitor filter loading.
Used in cleaning cycle for bag house cleaning.

Features:

Differential Pressure Manometer
Backlit LCD Dual Display
Low Battery Indication
Under Range and Over Range Indication
Fast Response Time
Battery Operated
Measuring Range: 0 – 5 PSI
It measures in various units like inH2O, PSI, bar, mbar, kPa, inHg, mmHg, OZin2, ftH2O, cmH2O, kgcm2.
With RS-232 PC Interface Facility
High Accuracy of 0.3%

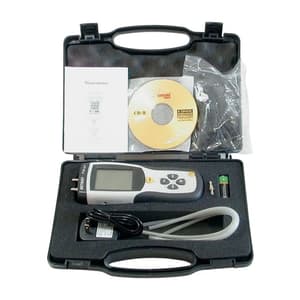

What's Included In This Package:

1x Metravi PM-01 Differential Pressure Manometer
1x 9V Battery
1x Power supply cable
1x Instruction manual
1x Demonstration CD
1x Carrying case
1x Pc interface cable

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKU	ME.NO.MA.00008
Product Type	Manometer
Model No	PM01
Display	Dual LCD
Accuracy	±0.3% FSO
Repeatability	±0.2% (Max. +/-0.5% FSO)
Linearity / Hysteresis	+0.29% FSO
Pressure Range	+5 psi
Maximum Pressure	20psi
Response Time	0.5 Seconds typical
Over range Indicator	Err.1
Under range Indicator	Err.2
Operating Conditions	0 - 50°C
Storage Conditions	-10 - 60°C
Power Supply	9V Battery or external 9VDC
PC Interface	RS232 (Optional)
Serial format	Baud rate: 9600 Baud, 8 Data Bits.
