Metravi 0 - 200 mm/s RMS 3-in-1 Vibration Tester With Bearing Condition Analyser, VT-150

Shop all Metravi

SKU: ME.EL.VI.00016

Model: VT150

Roll over image to zoom zoom_in
  1. Metravi 0 - 200 mm/s RMS 3-in-1 Vibration Tester With Bearing Condition Analyser, VT-150
  2. Metravi 0 - 200 mm/s RMS 3-in-1 Vibration Tester With Bearing Condition Analyser, VT-150
  3. Metravi 0 - 200 mm/s RMS 3-in-1 Vibration Tester With Bearing Condition Analyser, VT-150
  4. Metravi 0 - 200 mm/s RMS 3-in-1 Vibration Tester With Bearing Condition Analyser, VT-150
  5. Metravi 0 - 200 mm/s RMS 3-in-1 Vibration Tester With Bearing Condition Analyser, VT-150
  6. Metravi 0 - 200 mm/s RMS 3-in-1 Vibration Tester With Bearing Condition Analyser, VT-150
Visit Metravi Store keyboard_double_arrow_right
  • Product Type: Vibration Meter
  • Accuracy: < ±5%
  • IR Temperature Range: -20°C to 120°C
  • Laser Guide: <1mW. IEC 60825-1 compliant, Red
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹243729 (Incl. of all taxes)

₹206550+ ₹37179 GST (18%)

MRP ₹303750

SAVE 32%

5 Business Days

1 Set

90318000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

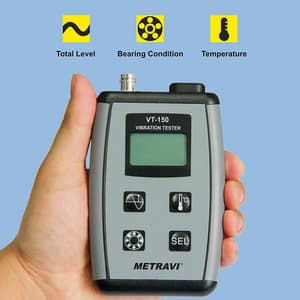

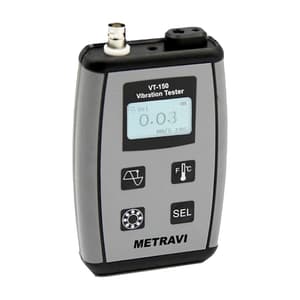

The Metravi VT-150 Vibration Meter is a reliable and easy to use, hand-held, condition inspection instrument; a fundamental tool of predictive maintenance on the plant floor. It provides Vibration measurement, Bearing Condition checks, and a built-in Infrared Thermometer, along with Machine Alarm indications as well.

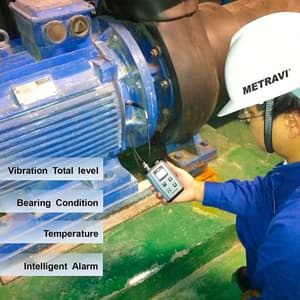

The Metravi VT-150 enables plant maintenance technicians to monitor their machines, find potential problems in advance, to prevent failures & breakdowns and ensure machine reliability.


Features:

  • Alarm Indication
  • Built-in analysis function.
  • Analysis results displayed on the screen at the press of a button.
  • With ISO standard analysis function.
  • Large buttons that are easy to press even with gloves on.
  • Practical, easy-to-use vibrometer with diagnosis function.
  • Three measurement modes such as acceleration, speed and displacement.


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.VI.00016
Product TypeVibration Meter
Model NoVT150
Display Monochromatic LCD

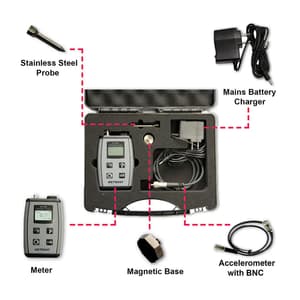

Sensors 100mv/g, BNC Connector, IEPE Accelerometer, Integral 80 cm Cable
Accuracy < ±5%
Vibration Acceleration Range 0-20g, Peak Frequency 10-12kHz
Vibration Velocity Range 0-200mm/s RMS, Frequency 10Hz-1kHz
Vibration Displacement Range 0-2000µm, Peak-Peak Freq. 10Hz-1kHz
IR Temperature Range -20°C to 120°C
IR Temperature Accuracy ±2°C
IR Temperature Resolution 1°C
Laser Guide <1mW. IEC 60825-1 compliant, Red
Distance to Sighting Ratio 8:1
Power Supply Battery
Battery Type Li-Ion Rechargeable, 3.6V 1700 mAh
Reharge Time 3 hours approx
Operation Time >50 hours continuous
Mains Charger 4.2 V DC 600 mA output, 50/60 Hz input, AC 100-240 V
In-Car Charger 4.2V DC 600mA output, DC 12-24V input
Operating Temperature Range -10°C to +50°C
Storage Temperature Range -20°C to +60°C
Ingress Protection IP64 – Dust-tight, splash-resistant
Electromagnetic Compatibility 2004/108/EC
