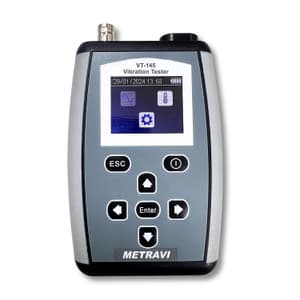

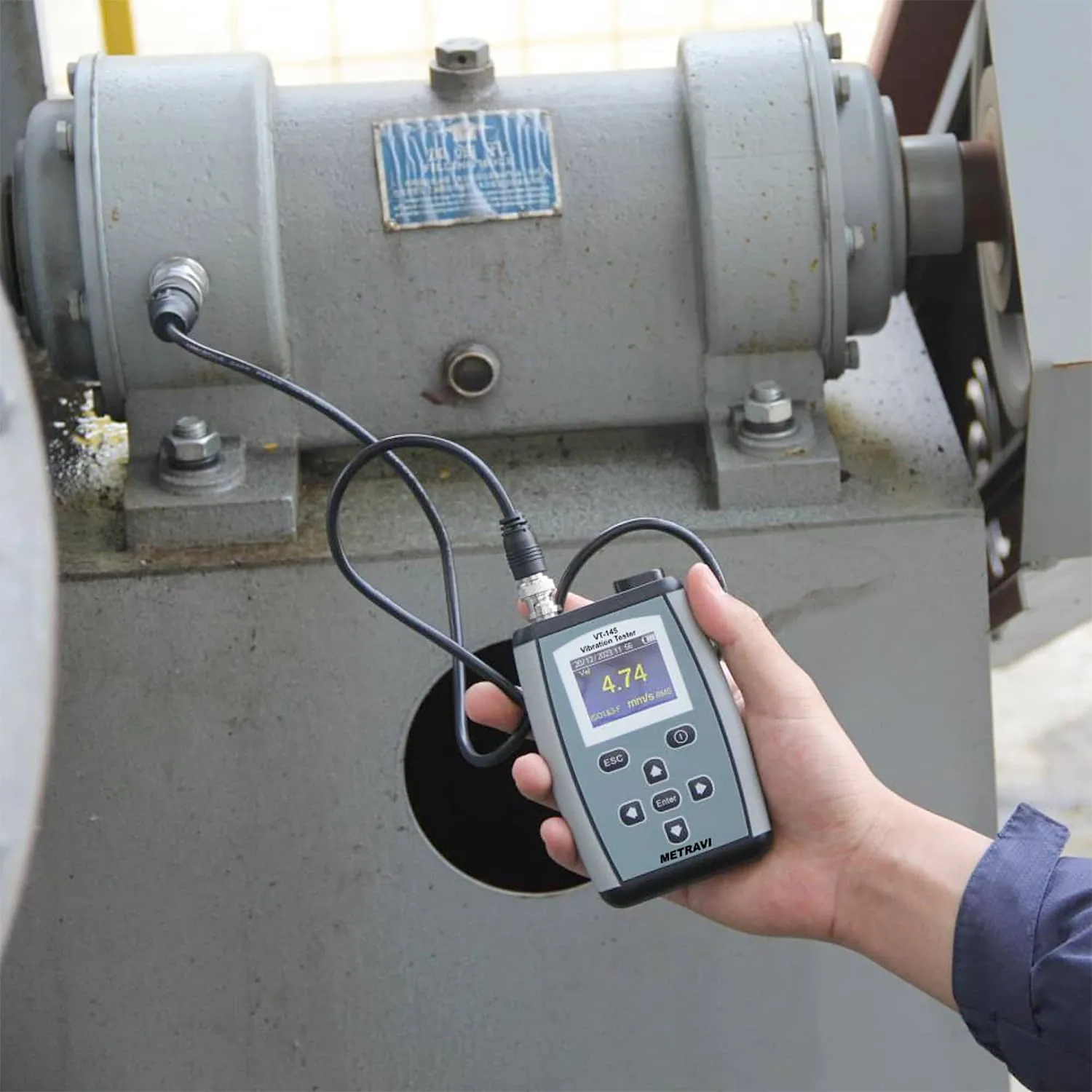

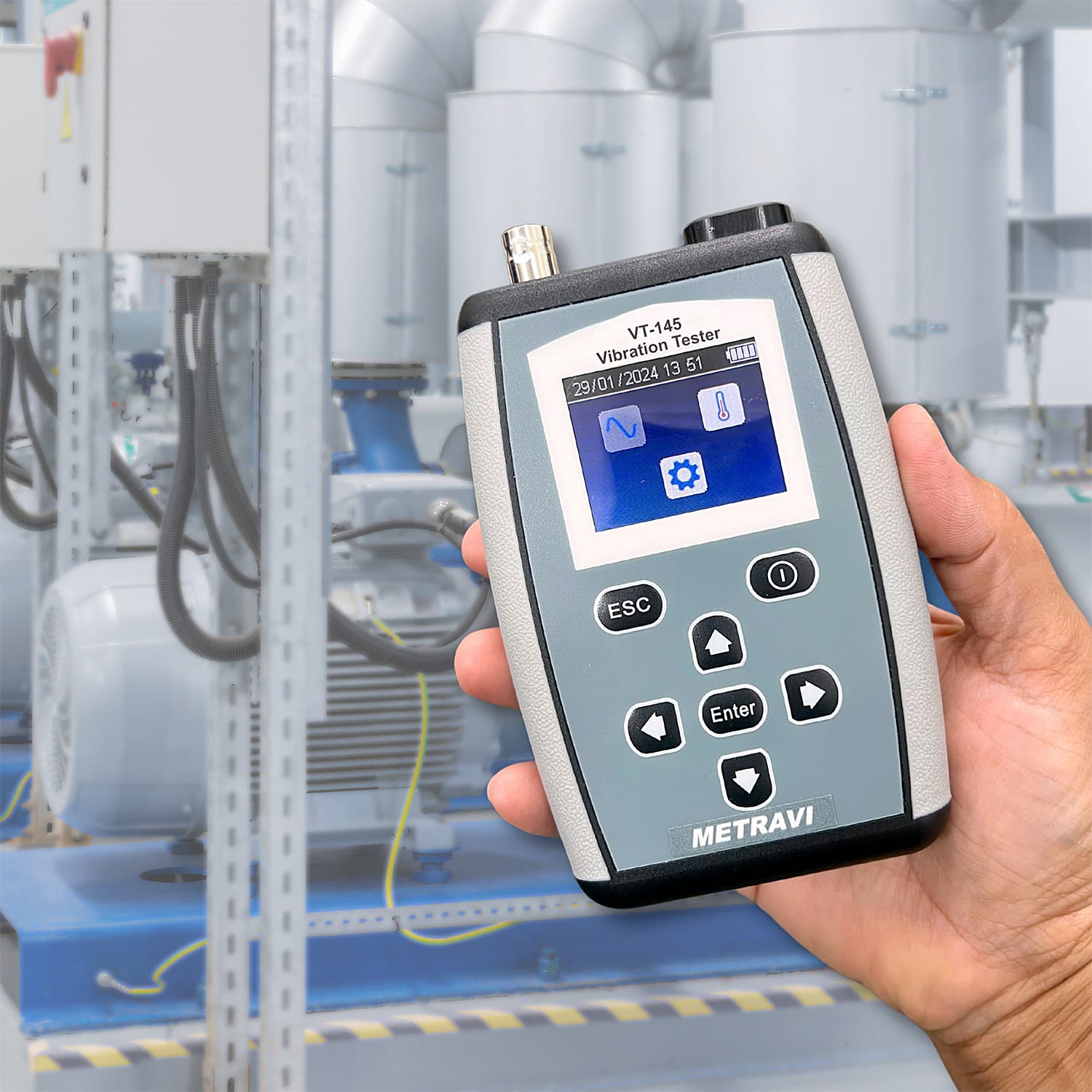

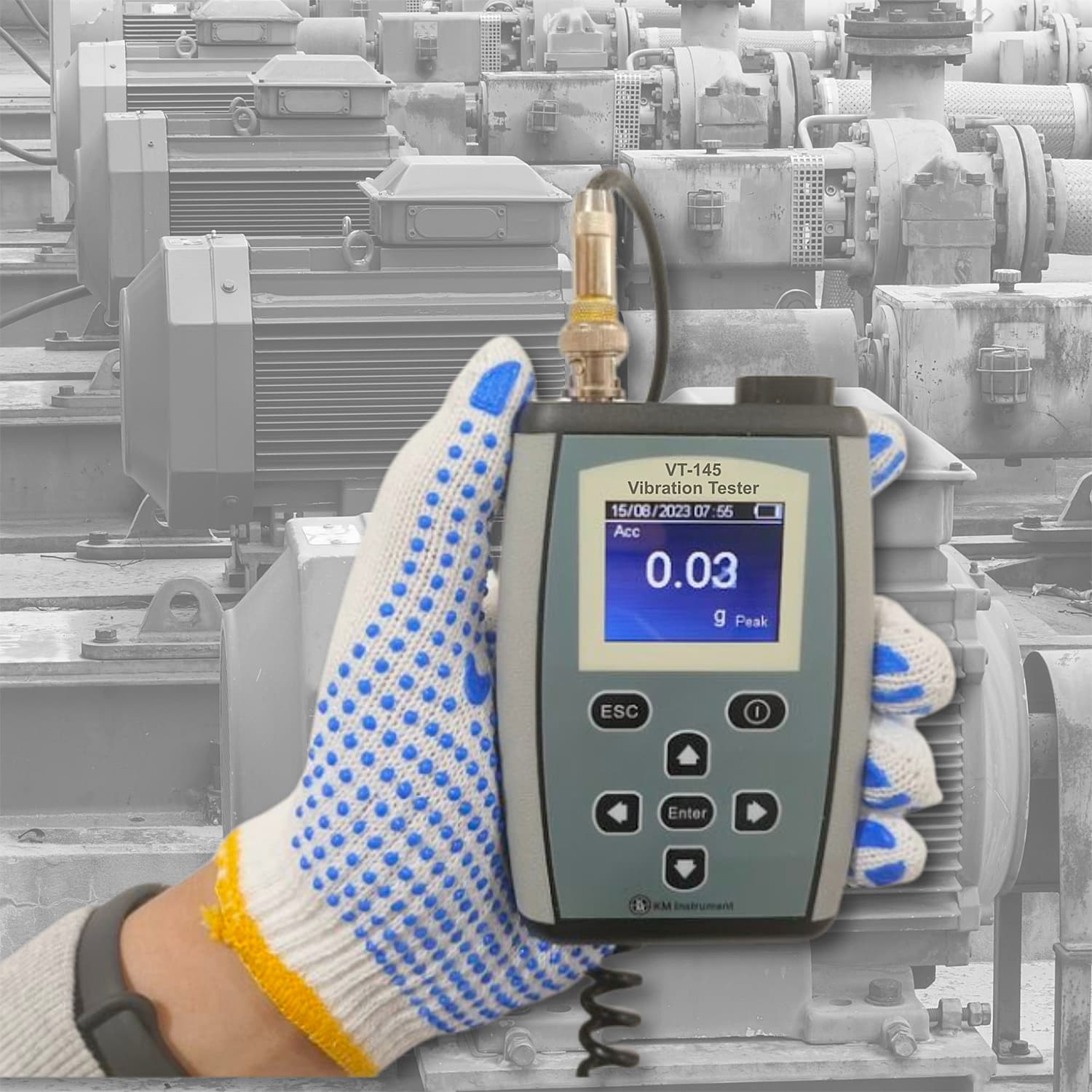

The Metravi PRO VT-145 Machine Condition Monitor with Vibration Tester is a handheld instrument based on the latest microprocessor design. It can measure Vibration, Infrared Temperature and features intelligent colour alarm functions. The instrument is simple and easy to use, suitable for on-site machine operation and maintenance inspector to monitor machine condition, detect problems in time, and ensure reliable operation of machines. The Metravi VT-145 can measure the effective value of Vibration Velocity (mm/s RMS), Single Peak Acceleration (g P), Peak-to-Peak Displacement (um P-P) and high-frequency Acceleration value (BG Peak).

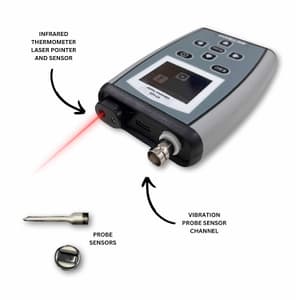

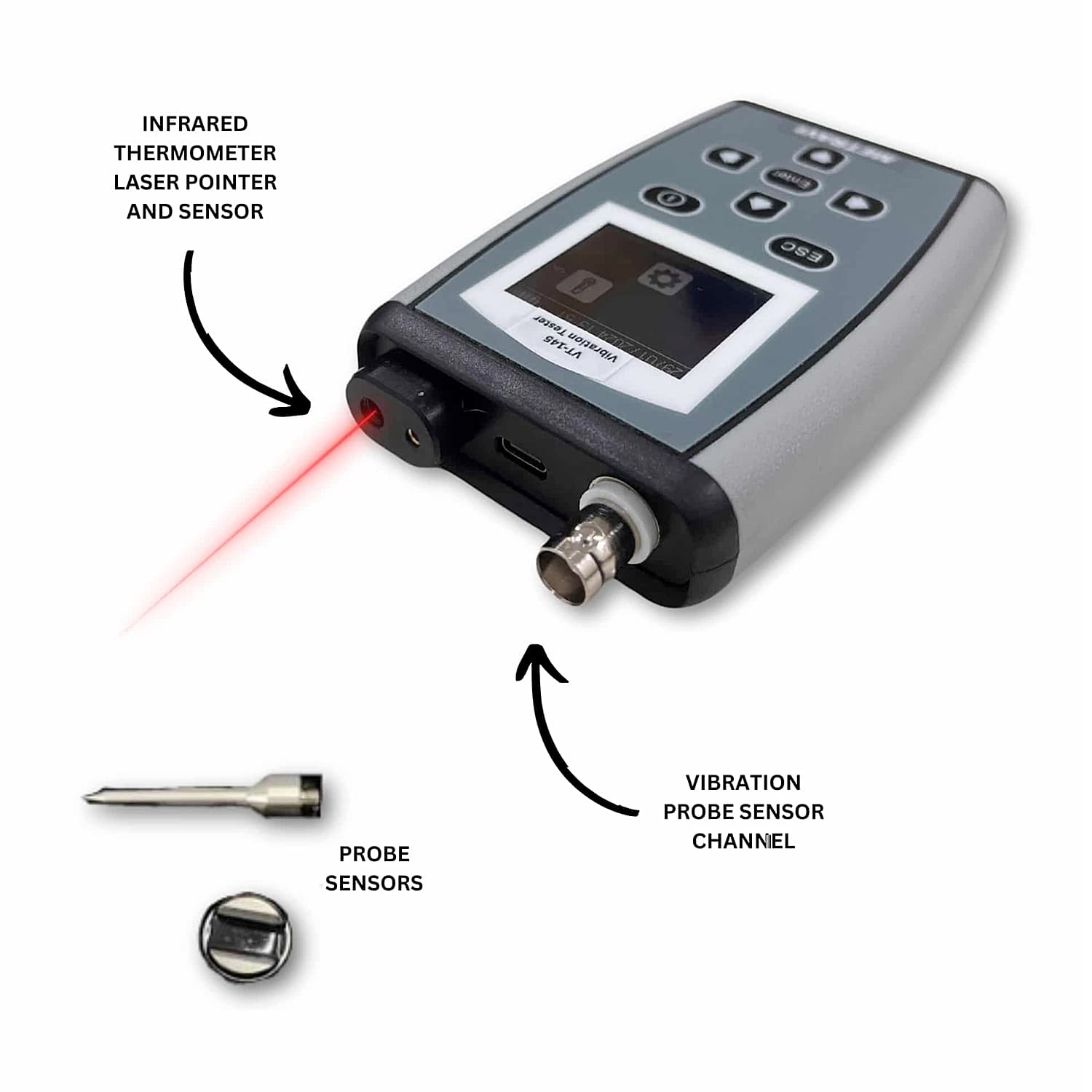

When measuring velocity, the instrument will automatically determine and indicate the machine alarm status in colour based on the built-in ISO10816-3 machine vibration standard. In addition to its vibration detection function, the Metravi VT-145 is also equipped with a non-contact Infrared Thermometer, which is mainly used for checking bearing temperature. The measuring range is -20°C ~ 120?, and the measuring position is indicated by a red laser pointer.

Features:

• Input: 100mV/g IEPE acceleration sensor, 80cm cable and BNC connector
• Alarm Indication: Built-in ISO10816-3 machine vibration standard evaluation of vibration speed alarm state

Technical Data:

Vibration Measurements	Velocity: 0-200mm/s RMS Frequency 10Hz-1kHz Displacement: 0-2000μm Peak-Peak Freq. 10Hz-1kHz Acceleration: 0-20 g Peak Frequency 10Hz-1kHz High frequency acceleration 0-20 g peak, frequency range 1 kHz ~12 kHz
Infrared Temperature	Measurement Range: -20~120? Laser Dot Target Indication Accuracy: ±2°C Resolution: 1°C D:S 8:1

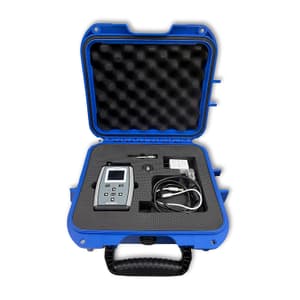

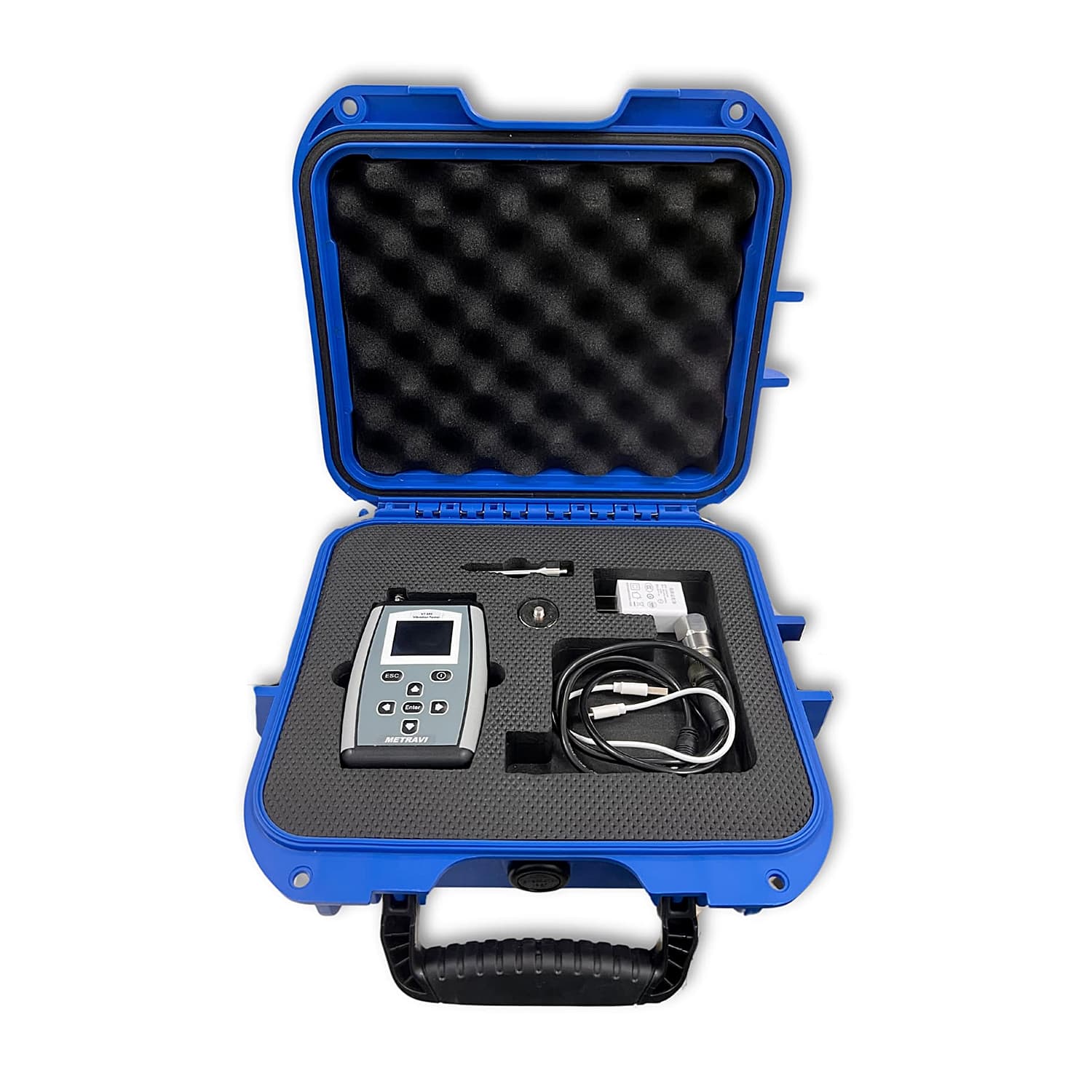

Package Content:

• Vibration Tester
• Acceleration sensor (With 80cm length cable)
• Battery Charger
• Carrying case
• Magnetic holders for sensors
• Probe
• User Manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
