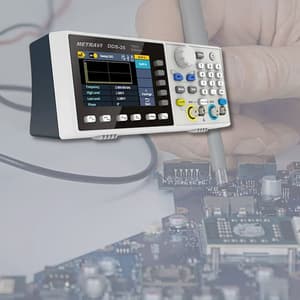

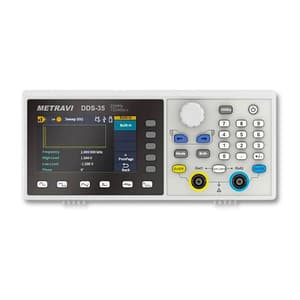

Metravi 1µHz - 35MHz Digital DDS Function Generator, DDS-35
Roll over image to zoom zoom_in
- Weight: 0.5 Kg
- Product Type: Function Generators
- Sine: 1µHz - 35MH
- Sample Rate: 125Ma/s
- Load Impedance: 50 Ohms (typical)
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹22283.12 (Incl. of all taxes)
₹18884+ ₹3399.12 GST (18%)
MRP ₹27770
SAVE 32%
5 Business Days
1 Set
85432000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
The Metravi DDS-35 Function Generator is compact yet high-performing, arbitrary waveform generators with built in support for Lab View.
This function generator can produce 5 basic waveforms & have 150 built-in arbitrary waveforms. They feature high resolution 3.6 inch LCD displays. The compact size of the instruments makes them ideal for the professional on-the-go and on the field or lab.
Features:
- Sampling Rate: Max 300MSa/s
- Comprehensive waveform output
- 5 basic waveforms and 150 built-in arbitrary waveforms
- Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst.
- SCPI, and LabVIEW supported
- Ultra thin, lightweight and compact
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.FU.00014 |
|---|---|
| Product Type | Function Generators |
| Model No | DDS35 |
| No of Channel | 2 |
| Output Frequency | 35MHz |
| Vertical Resolution (A/D) | 14 bits |
| Sine | 1µHz - 35MH |
| Square | 1µHz ~ 15MHz |
| Pulse Range | 2mHz ~ 15MHz |
| Ramp | 2mHz ~ 1MHz |
| Noise | 20MHz (-3dB,typical) |
| Frequency Stability | ±30 ppm at 0±40° |
| Frequency aging rate | ±30 ppm per year |
| Arbitrary Waveform Length | 2 to 8Kpts |
| Sample Rate | 125Ma/s |
| DC offset resolution | 1mV or 4digits |
| Load Impedance | 50 Ohms (typical) |
| Modulation Type | AM, FM, PM, FSK |
| Internal Modulation Frequency | 2 mHz to 100 kHz |
| Burst characteristic Types | N-Cycle |
| Trigger Source | Internal, manual |
| Communication Interface | USB |
| Arbitrary waveforms | 150 built-in memory |
| Remote Operation | Via PC |
| Command Support | LabVIEW, SCPI |

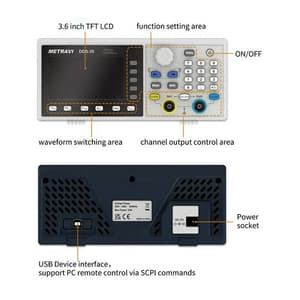

| Display | 3.6” LCD, 480 x 272 pixels |
| Frequency Resolution | 1µHz or 7 significant figures |
| Carrier frequency | 2 mHz = Offset = Maximum frequency of corresponding carrier /2 |
