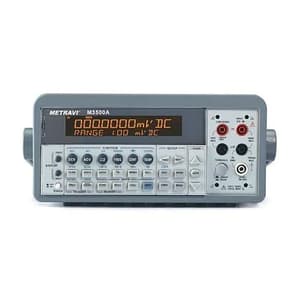

6-1/2 Digits M-3500A Bench type Multimeter with multiple options.

Features:

• Resolution : 6½ digit.
• Display : 5x7 dot matrix VFD, dual displays with three-color annunciators
• Remote Interface : USB and GPIB (optional).
• High Speed : Both sampling rate and data rate are at 2000 readings/sec (at 4½ digit setting)
• DC Voltage : ±0.0015% of reading (24-hour).
• AC Voltage : +0.04% of reading (24-hour).
• AC Measurement Range : 3 Hz to 300 kHz.
• High Sensitivity : DC Voltage: 0.1μV
• Resistance : 100μΩ
• High Capacity of Internal Data Memory : It can store up to 2000 readings in data memory
• Full-Featured Operations : There are 11measrrements and 8 math functions.
• Temperature Measurements : The built-in function supports two measurement methods: Theromocouples and RTDs. For themocouples, it supports up to 7 types of sensors: E, J, K, N, R, S and T.
• Free PC Applications : We provide MatLab and labView applications that allows user to do a variety of tasks. Also feature the P"T-Tool that can acquire data directly from the measurement into MS World or Excel. Even without MS World or Excel, user can choose our PT-Link, which is a stand-alone application.
• Stability, Speed and Accuracy : The 6½ digit M3500A DMM is designed with 7½ digit techniques to provide user a stable, faster and accurate measurement. The following figure is the stability performacne comparison between the typical 62 digit DMM and the M3500A.
• 19 Full-Featured Functions : There are 11 measurements and 8 math function: DCI, DCV, ACI, ACV, 2WS, 4WQ, Frequency, Period, Diode, Continuity, Temperature: Limits, Ratio, MX+B, %, dBm, dB, Min/Max, Null. In addition, Trigger and Memory functions are also involved. All functions above facilitate your measurements batter.
• Multi-Point Scan : The M3500A supports up to 10 channels (2-pople) multi-point scan. For using this option, user needs to have an additional multi-point scanner card (Model M3500-opt01). The installation of the multipoint scanner card is very easy - just turn off the power and plug in the multi-point scanner card, and it is done!
• Noise Immunity : This model has an excellent performance on noise immunity. The core of this DMM is a powerful multislope analog to digital converter (A/D converter). This special A/D converter (P.S. patent is pending) helps the DMM to reach a high-speed sampling rate filters out most noise, and still keeps a good measurement linerity. In addition, to reduce the environmental background noise, we have added four sels of earth ground on the meter's front panel. And the copper conductors inside the meter also contribute to reducing thermal EMF's.
• Built-In USB Interface : The M3500A is equipped with a standard USB interface. This easy-to-use and hot plug-in USB interface has a high data-transfer rate over 2000 readings per second. It allows your DMM to reach a truly high speed, both internal sampling rate and I/O date rate, thus increase the measurement speed of your DMM.



Whats Included In This Package:

• 1x Power cord.
• 1x CD (user manual and software applications).
• 1x Test leads,
• 1x USB cable.
• 1x Thermal Adapter 6 Types (Optional)
• 1x BNC top Banana Adaper (Optional)
• 1x Multi-Point Scanner Card (Optional)
• 1x GPIB Card: M3500A (Optional)
• 1x RTD Probe Adapter (Optional)
