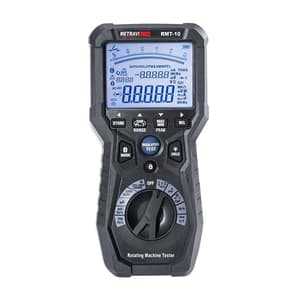

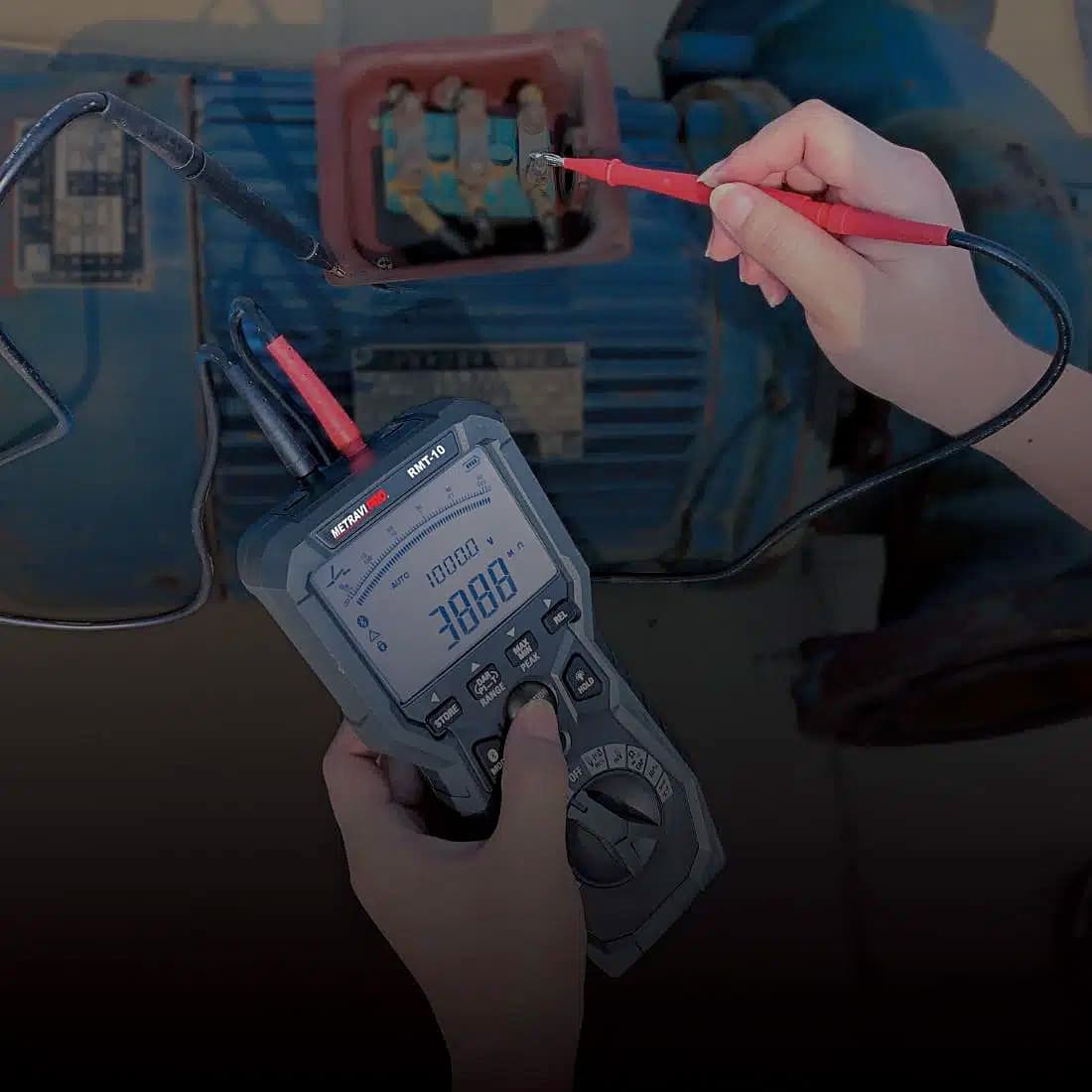

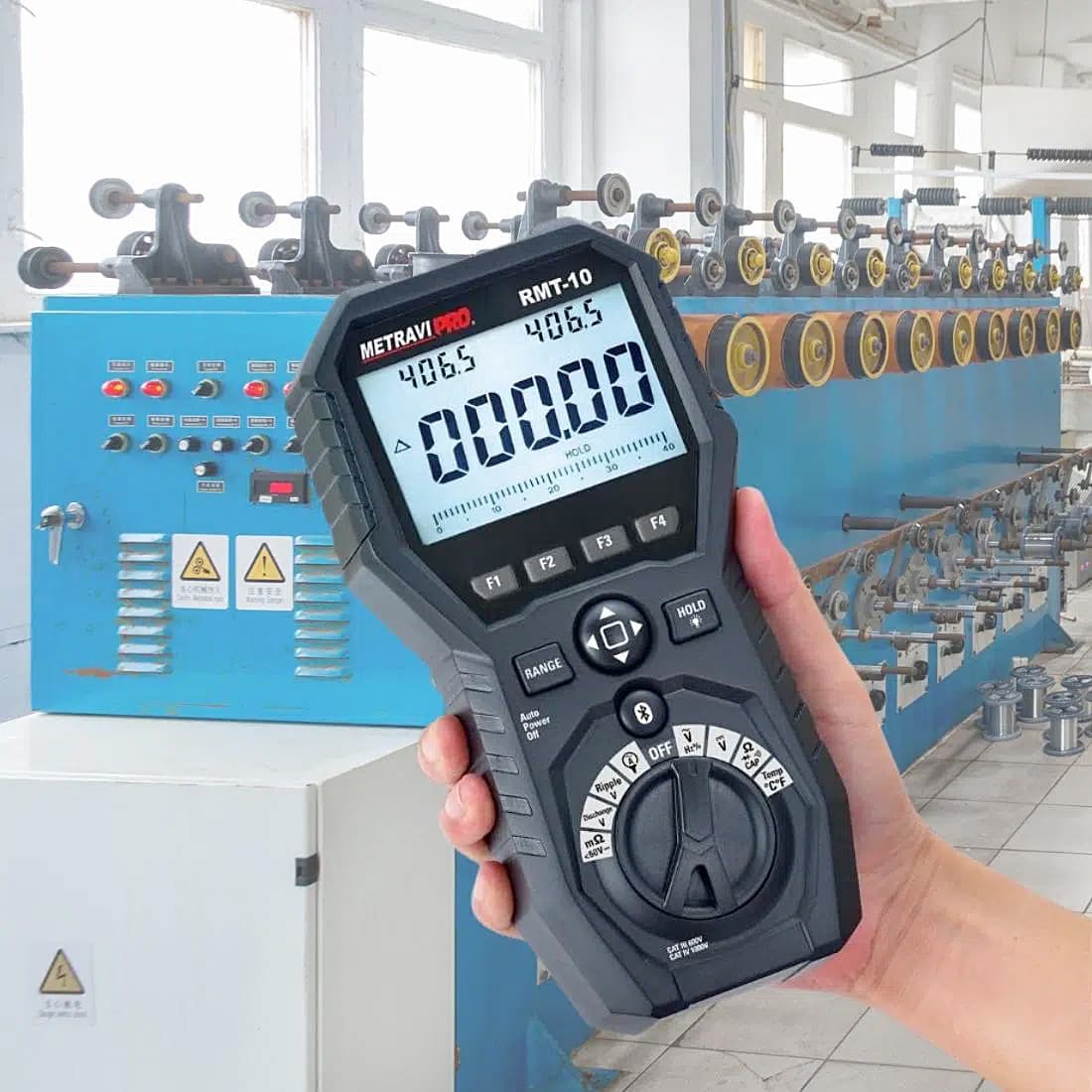

An ideal tool to test all machines and motors. The instrument can be used as a Digital Multimeter, an Insulation Tester, as well as a 4-wire Low Resistance Tester.

This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency (electrical & electronic), Duty Cycle, Diode Test, Insulation Test and Continuity plus Thermocouple Temperature. It can store and recall data. It features a waterproof, rugged design for heavy duty use. While using as an Insulation Tester, Polarisation Index (PI) and DAR measurements can also be done.

Features:

• Di-Electric Absorption Ratio
• MAX / MIN Hold
• Diode & Continuity test
• Peak Hold
• Data Hold
• Display 50,000 Counts backlit liquid crystal with bar graph
• V DC or V AC 1000V DC/AC RMS
• mA AC/DC 500mA 1000V fast acting fuse
• A AC/DC 10A 1000V fast acting fuse (20A for 30 seconds max every 15 minutes)
• Temperature -50°C to 1200°C
• Bluetooth for sharing data with Smartphone and free App to share, store and analyse data
• Surge Protection: 8kV peak per IEC 61010
• Enclosure Double-moulded, waterproof Shock (Drop Test) 3.2 feet (1m)
• Diode Test Test current of 0.9mA maximum , open circuit voltage 2.8V DC typical
• Continuity Check: Audible signal will sound if the resistance is less than 50W (approx.), test current <0.35mA
• Peak: Captures peaks >1ms
• Overrange indication “OL” is displayed
• Auto Power Off 15 minutes (approximately) with disable feature
• Polarity Automatic (no indication for positive); Minus (-) sign for negative
• Low Battery Indication
• Safety: Double insulation per EN61010-1 and IEC61010-1 2nd Edition (2001) to Category IV 600V and Category III 1000V; Pollution Degree 2. The meter also meets UL 61010-1, 2nd Edition (2004), CAN/CSA C22.2 No. 61010-1 2nd Edition (2004), and UL 61010B-2-031, 1st Edition (2003)

Specification:

DC Voltage Range	0-500mV/5V/50V/500V/1000V
DC Voltage Resolution	0.01mV to 0.1V
DC Voltage Accuracy	±0.1%
AC Voltage Range	0-500mV/5V/50V/500V/1000V
AC Voltage Resolution	0.01mV to 0.1V
AC Voltage Accuracy	±1.0%
DC Current Range	0-500µA/5000µA/50mA/500mA/10A
DC Current Resolution	0.01µA to 0.001A
DC Current Accuracy	±1%
Resistance Range	0-500Ω/5kΩ/50kΩ/500kΩ/5mΩ/50mΩ
Resistance Resolution	0.01Ω to 0.001MΩ
Resistance Accuracy	±1.0%
AC Current Range	0-500µA/5000µA/50mA/500mA/10A
AC Current Resolution	0.01µA to 0.001A
AC Current Accuracy	±1.5%
Capacitance Range	0-500nF/5µF/50µF/500µF/5mF
Capacitance Resolution	0.01nF to 0.0001mF
Capacitance Accuracy	±3.5%
Frequency Range	0-50Hz/500Hz/5kHz/50kHz/500kHz/5MHz/50MHz
Frequency Resolution	0.001Hz to 0.001MHz
Frequency Accuracy	±0.3%
