Metravi 100MHz / 1GS/Sec Four Channel Phosphor Digital Storage Oscilloscope, DSO-5104E

Shop all Metravi

SKU: ME.EL.OS.00023

Model: DSO5104E

Roll over image to zoom zoom_in

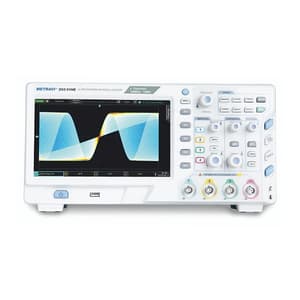

  1. Metravi 100MHz / 1GS/Sec Four Channel Phosphor Digital Storage Oscilloscope, DSO-5104E

  • Weight: 3.5 Kg
  • Product Type: Oscilloscopes
  • Bandwidth: 100 MHz
  • No. of Channels: Four Channel
  • Sample Rate: 1GS/s
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

77181.44 (Incl. of all taxes)

65408+ ₹11773.44 GST (18%)

MRP ₹96188

SAVE 32%



5 Business Days

1 Pcs

90302000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

100MHz DSO with coloured display, 1GSa/Sec sampling rate with USB device & host interface. Increased auto-measure speed, improved UI, optimised software which reduces wait-time and fixed upper limit bandwidth distortion in multi-channel mode.

  • Increased waveform capture rate greatly improves the ability to capture low probability events, signal jitters and glitches are easier to be seen.
  • Independent time base signals allows users to simultanously observe up to four different frequency signals clearly
  • High memory depth allows users to capture longer period signals without losing waveform details
  • Greatly increased number of triggering types
  • Auto Measurement: Peak-Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mean, Middle, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, Delay A- >B , Delay A- > B , Delay B- > A , Delay B- > A


Features:

  • Increased auto-measure speed
  • Improved UI – more user-friendly
  • Optimised software – reduces operation wait time
  • Fixed upper limit bandwidth distortion in multi-channel mode
  • Sample rate up to 1GS/s
  • Channels 4
  • Bandwidth 100MHz
  • Memory Depth 56Mpts (single channel)
  • Waveform Capture Rate up to 80,000 wfms/s
  • 256 multi-level intensity grading display
  • Up to 65,000 frames for waveform record, replay
  • Increased trigger types: Edge, pulse width, runt, window, N-edge, delay, timeout, duration, setup/hold, slope, video, code
  • Support serial bus trigger and decoding (RS-232, I2C, SPI included)
  • 8 inches, TFT LCD, WVGA (800 x 480)
  • Interface: USB Host, USB Device, LAN, AUX (Trig Out, Pass/Fail)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.OS.00023
Product TypeOscilloscopes
Model NoDSO5104E
Bandwidth 100 MHz
No. of Channels Four Channel
Sample Rate 1GS/s
Max. Memory Depth 56Mpts (single channel)
Waveform Capture Rate 80,000 wfms/s
Time Base Scale 5ns/div-50s/div
Input Coupling (1M Ohms ±2%) II (20pF±3pF)
Vertical Scale 1mV/div-20V/div (1M
DC Gain Accuracy ±3%
Waveform Record 65,000 Frames
Trigger Edge, Pulse width, Runt, Window, N-edge, Delay, Timeout, Duration, Setup/hold, Slope, Video, Code
Bus Decode RS-232/UART, I2C, SPI
Waveform Operation A+B, A-B, AxB, NB, FFT, Logic operation, Editable advanced
Number of Measurements Display 5 measurements at the same time
Measurement Statistic Average, Max, Min, Standard Deviation, Number of Measurements
Frequency Counter Hardware 6 bits counter (Channels are selectable)
Standard Interface USB-Host, USB-Device, LAN, AUX (Trig Out, Pass/Fail)
Optional Interface 25MHz Function/Arbitrary Waveform Generator
