Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M

Shop all Metravi

SKU: ME.IN.GA.00008

Model: GD09 1M

Roll over image to zoom zoom_in
  1. Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M
  2. Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M
  3. Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M
  4. Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M
  5. Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M
  6. Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M
  7. Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M

  • Product Type: Gas Detectors & Analyzers
  • Humidity Range: 0%RH to 97%RH
  • Pressure Range: 86kPa to 106kPa
  • Working Voltage: 110V - 220V AC
  • Maximum Power: <1W
  • Detecting Gases: Combustible Gas
  • Sampling Method: Diffusion
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

2112.2 (Incl. of all taxes)

1790+ ₹322.2 GST (18%)

MRP ₹2633

SAVE 32%



5 Business Days

1 Set

90271000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi GD-09-1 Combustible Gas Detector and Alarm, has high sensitivity, a compact design and reliable performance for detecting combustible gas (like LPG) leaks. Adopting high-quality smart sensors and advanced techniques, the device is suitable for gas leak detection at premises where gas leaks are possible to occur, such as households, hotels, shopping malls, cafes, industrial kitchens, offices, canteens, etc.

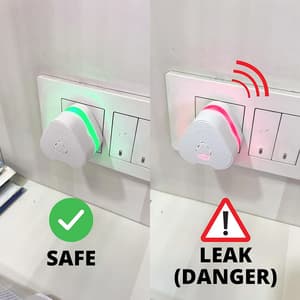

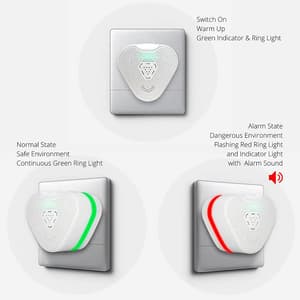

The device sounds an alarm with red flashing light, when gas concentrations reach or exceed the alarm set point, helping keep people safe from accidents like fire, explosion, suffocation, etc., due to the leak. Gas Detected: Combustible gases like LPG, Hydrogen, Methane, Propane, Iso-butane, etc.

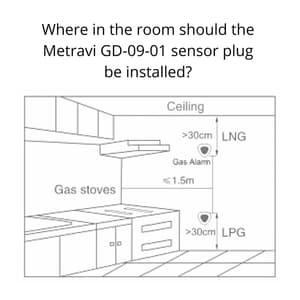

Where in the room should the sensor plug be installed?
The detector/sensor should be installed at a distance from the gas source radius within 1.5M, more than 30cms below the ceiling for methane (like LNG) or more than 30cm above the floor for propane and butane (like LPG).


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.IN.GA.00008
Product TypeGas Detectors & Analyzers
Model NoGD09 1M
Temperature Range -10°C to 50°C
Humidity Range 0%RH to 97%RH
Pressure Range 86kPa to 106kPa
Working Voltage 110V - 220V AC
Maximum Power <1W
Detecting Gases Combustible Gas
Sensor Type Semiconductor Sensor
Sampling Method Diffusion
Alarm Set Point 5% LEL
Warm-up Time 180+10S
Response Time <30sec
Recovery Time <30S
Alarm Sound >70dB
Plug Pin Type Two-pin
Colour Off White
Alarm Mode Beep Sound With Red Indicator Light
