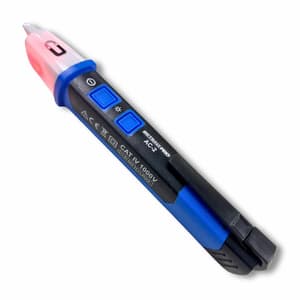

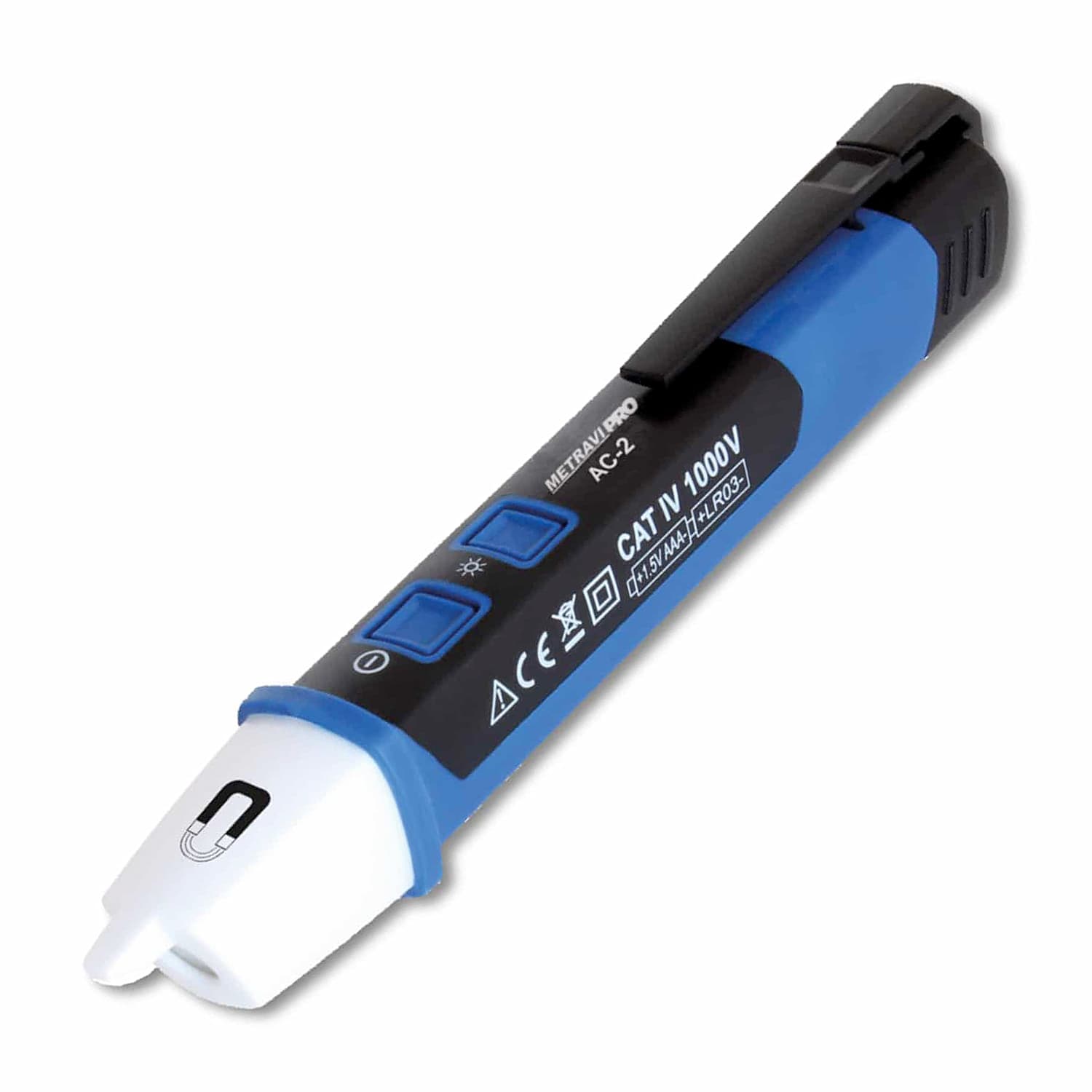

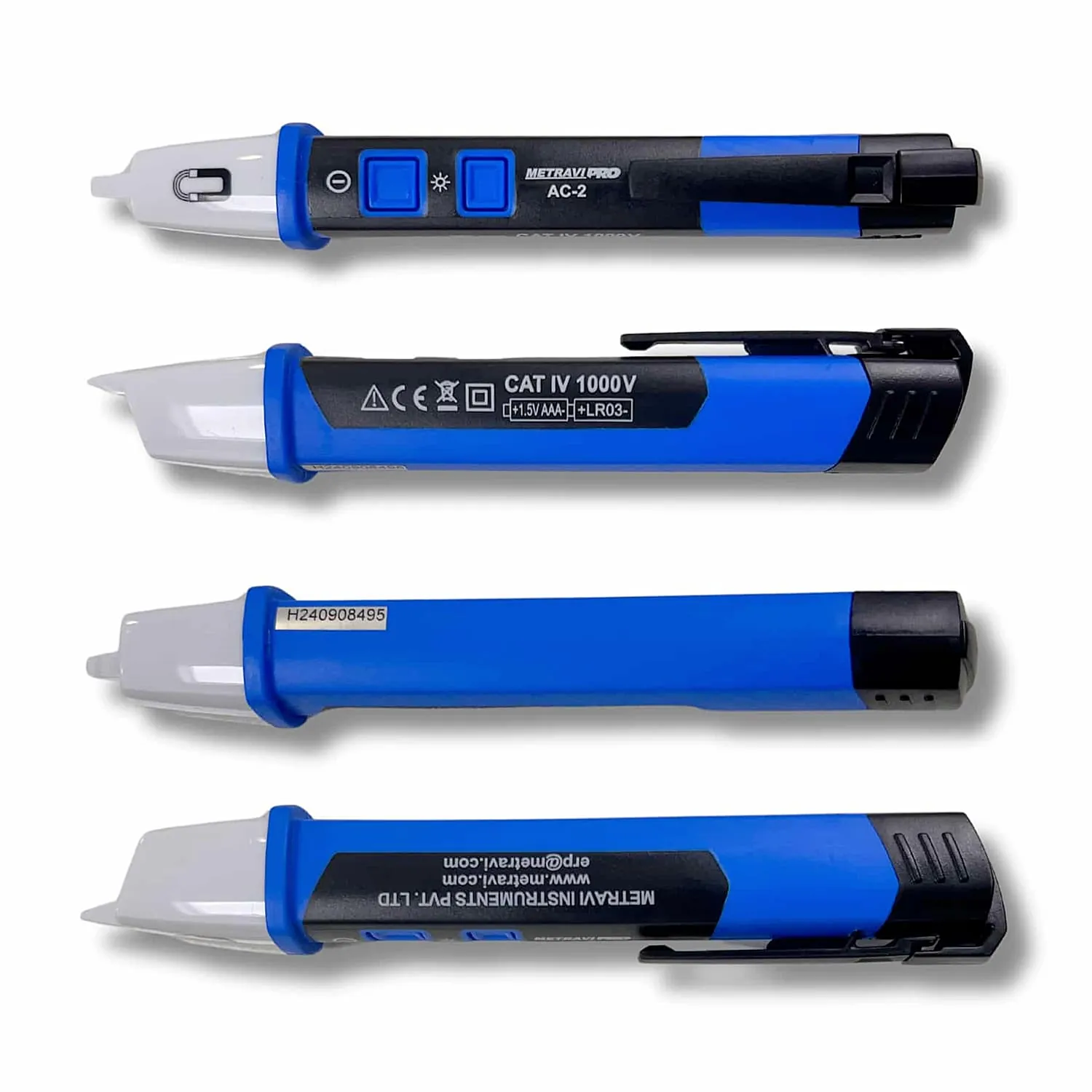

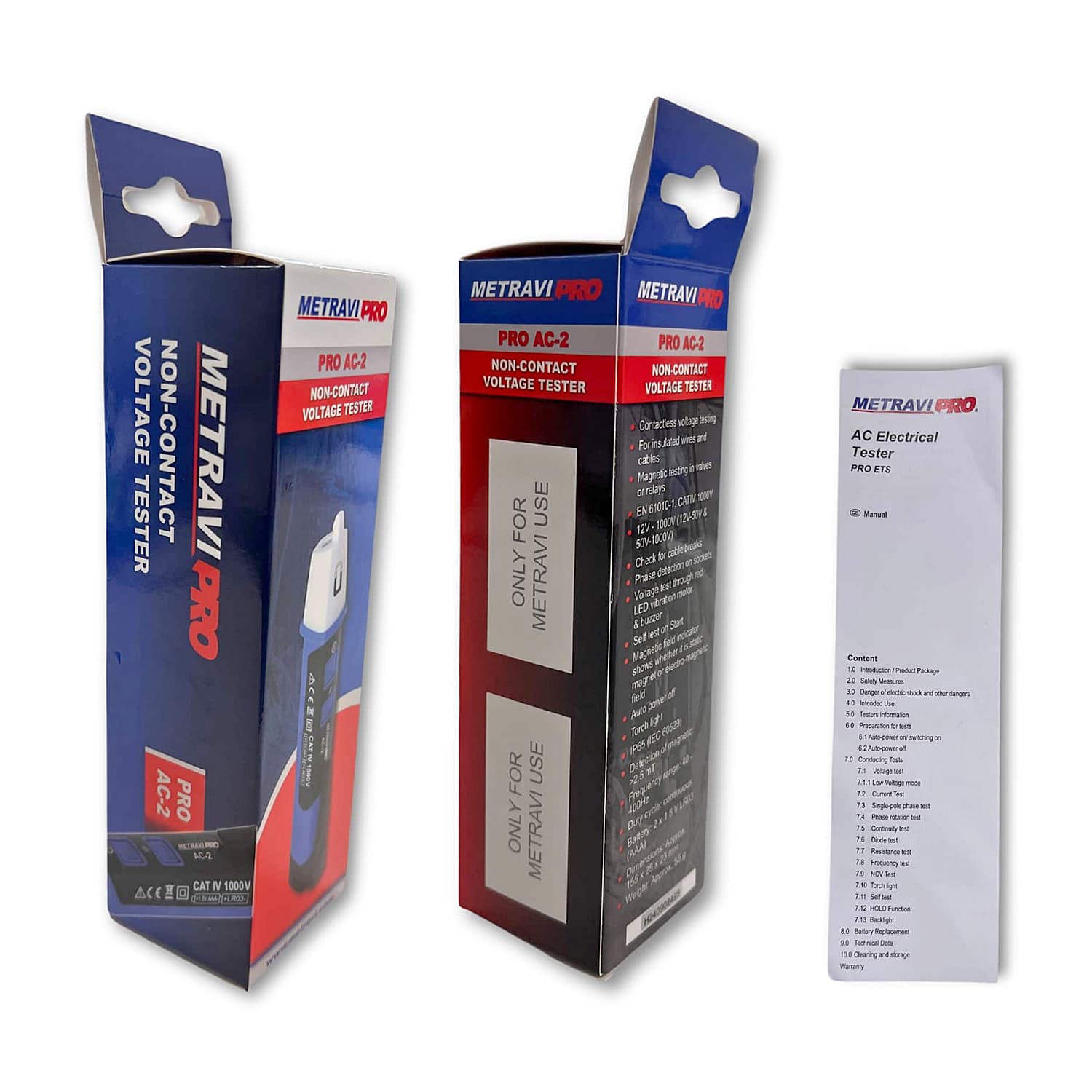

Metravi 12V - 1000V AC Non-contact Voltage Detector, PRO AC-2

Shop all Metravi

SKU: ME.NO.DE.00077

Model: PROAC2

Roll over image to zoom zoom_in
  1. Metravi 12V - 1000V AC Non-contact Voltage Detector, PRO AC-2
  2. Metravi 12V - 1000V AC Non-contact Voltage Detector, PRO AC-2
  3. Metravi 12V - 1000V AC Non-contact Voltage Detector, PRO AC-2
  4. Metravi 12V - 1000V AC Non-contact Voltage Detector, PRO AC-2
  5. Metravi 12V - 1000V AC Non-contact Voltage Detector, PRO AC-2
  6. Metravi 12V - 1000V AC Non-contact Voltage Detector, PRO AC-2
  7. Metravi 12V - 1000V AC Non-contact Voltage Detector, PRO AC-2

  • Weight: 55 Grams
  • Product Type: Detectors
  • Voltage Detection Range: 12V – 1000 V AC
  • Frequency Range: 40 – 400 Hz
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

1841.98 (Incl. of all taxes)

1561+ ₹280.98 GST (18%)

MRP ₹2295

SAVE 32%



5 Business Days

1 Pcs

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

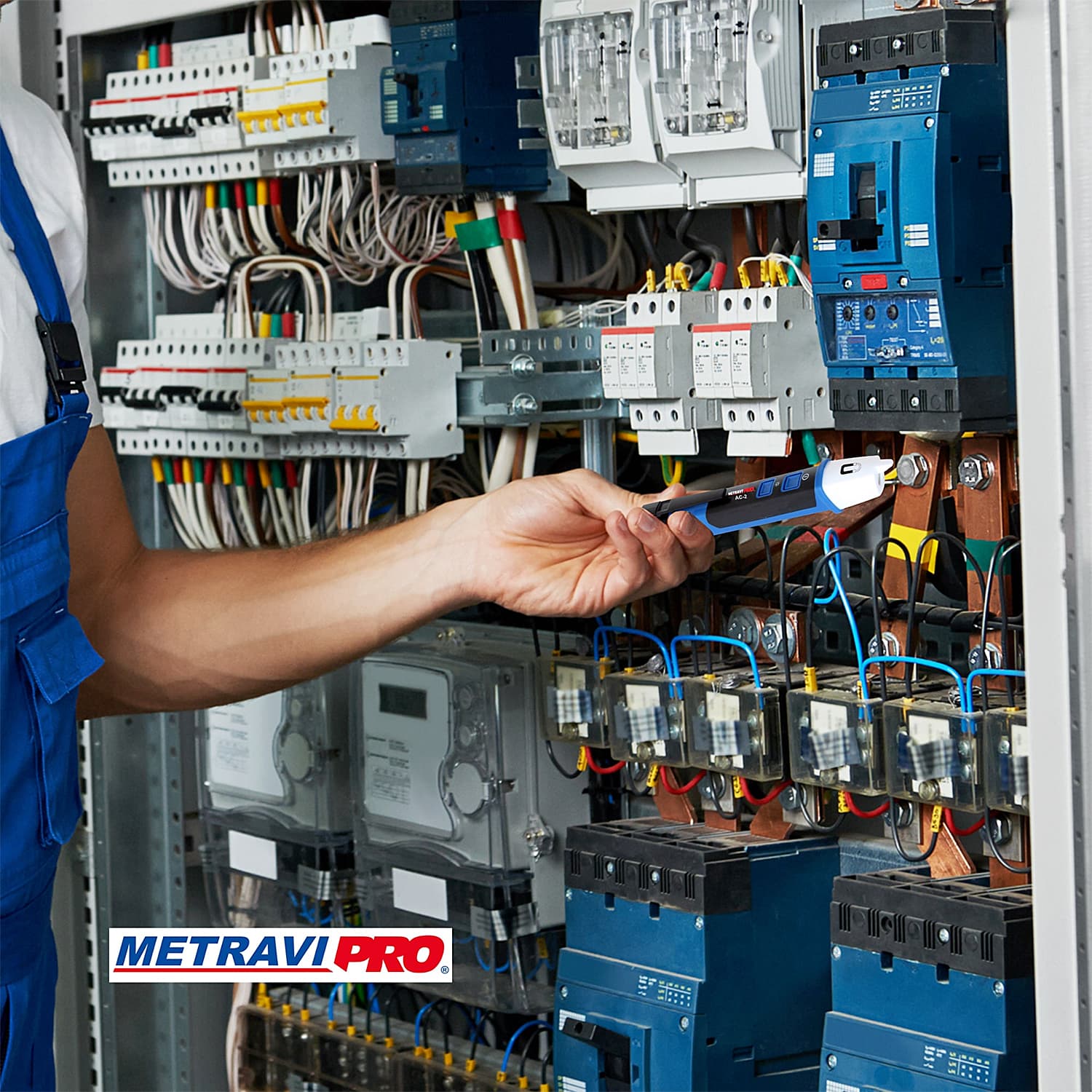

The Metravi Pro AC-2 Non-contact Voltage Detector is developed and manufactured in Germany, is used for voltage testing of insulated wires and cables. Additionally, magnetic functions in valves or relays can be tested. No direct contact to the device under test (DUT) is required.


Features:

  • Designed to meet international safety standards EN 61010-1
  • ?Measurement Category CAT IV 1000V
  • ?Test 12V and 1000V (2 ranges: 12V-50V & 50V-1000V)
  • Voltage test through Red LED, vibration motor and buzzer
  • Power-on indication
  • Self test during power on
  • Low battery indication
  • Auto power-off

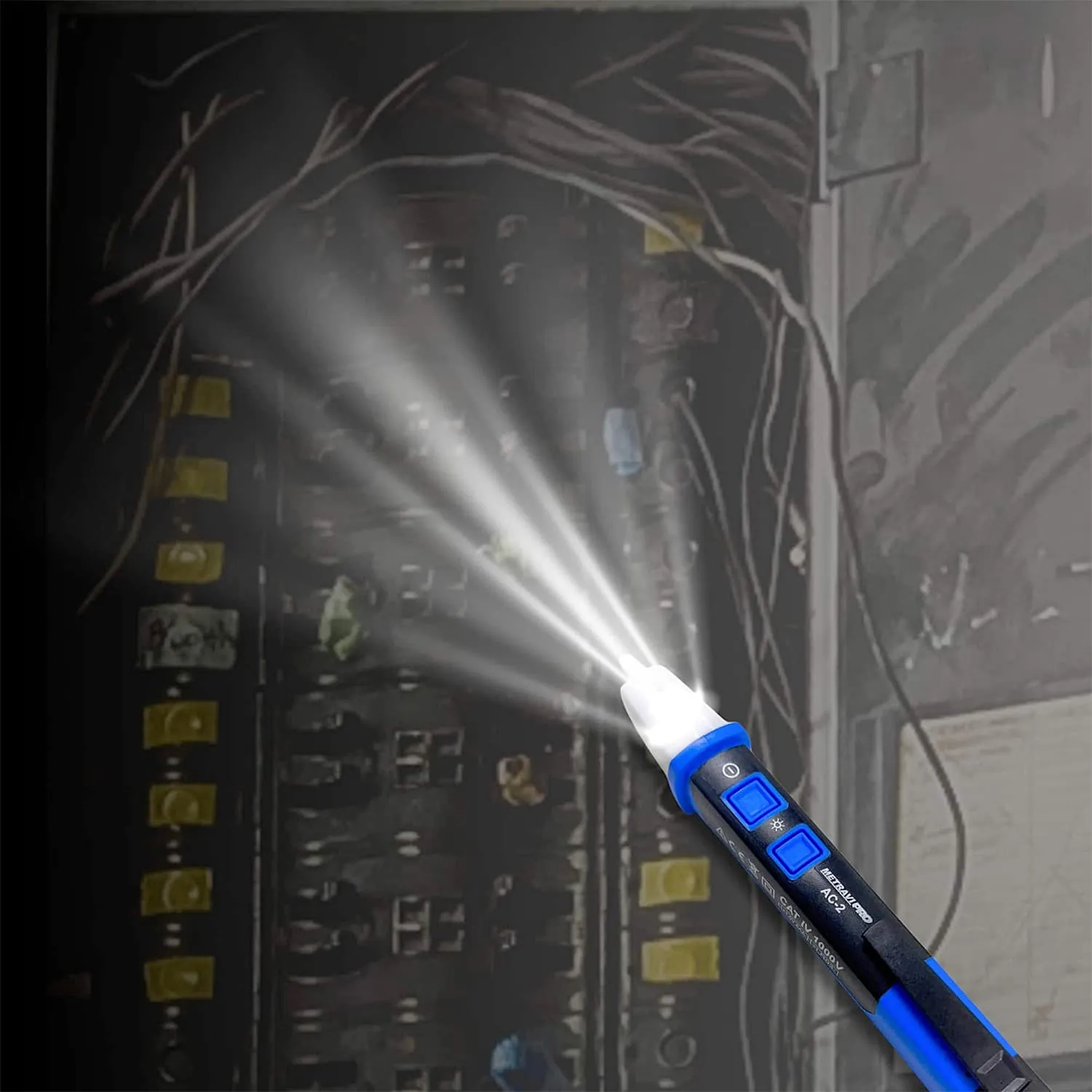

  • Built-in LED Flashlight
  • IP65 (IEC 60529) protection


A 6-in-1 instrument for:

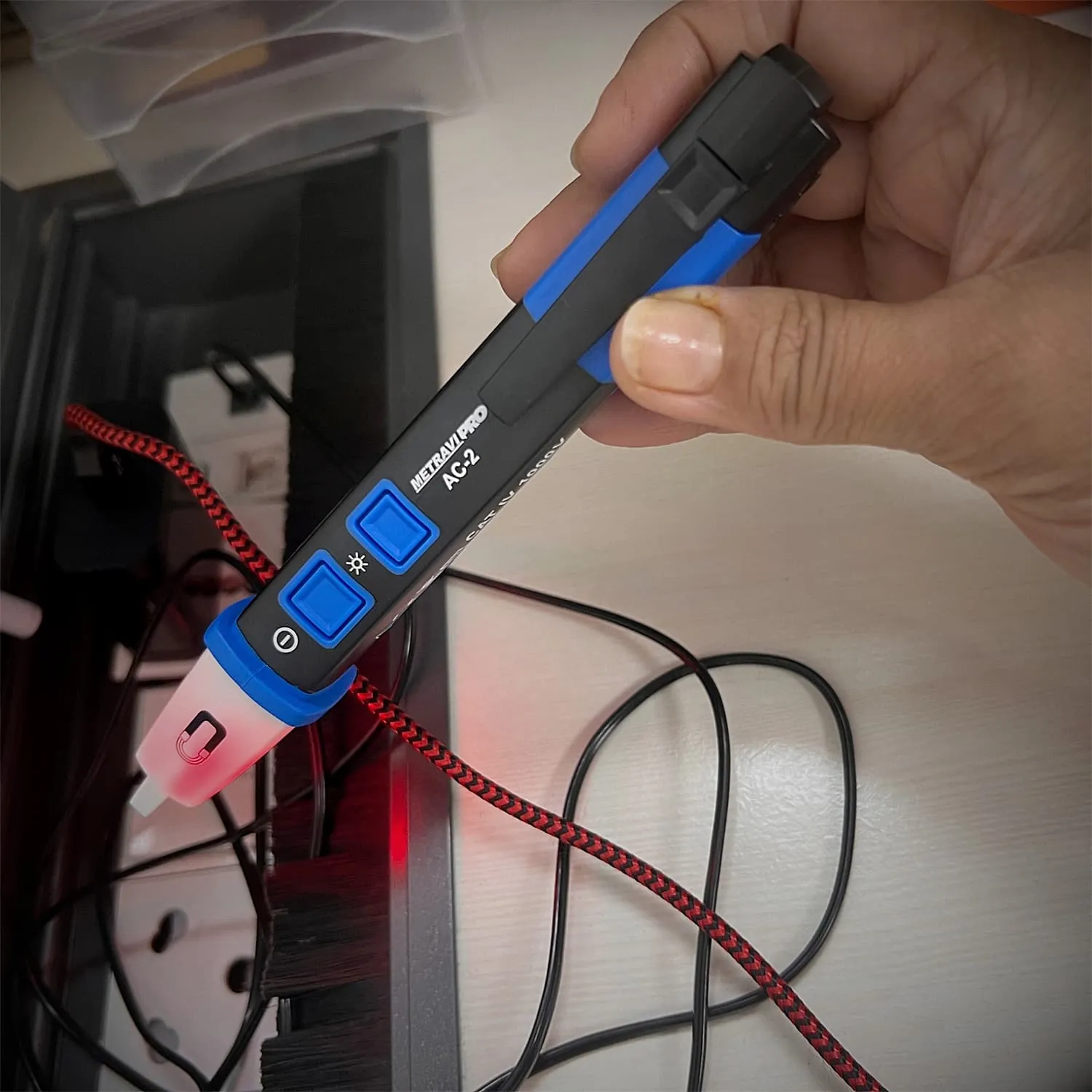

  • Non-contact Voltage Detection
  • Phase detection on Sockets
  • Non-Contact Magnetic Field Detection
  • Determination of Static or Electro Magnetic Fields
  • Check for Cable Breaks
  • LED flashlight to access Dark Areas

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.NO.DE.00077
Product TypeDetectors
Model NoPROAC2
Voltage Detection Range 12V – 1000 V AC
Frequency Range 40 – 400 Hz
Power Supply 2 x 1.5 V LR03 (AAA Alkaline Battery)
Protection IP65
Display Bright Red/Yellow LED
Vibration Yes
Magnetic Field >2.5 mT
Current Consumption 80mA
Dimensions 155 x 25 x 23 mm
