Metravi 1400W/m2 Solar Irradiance Meter With Temperature Probe, PRO IM-09

Shop all Metravi

SKU: ME.EL.PO.00085

Model: PROIM09

Roll over image to zoom zoom_in
  1. Metravi 1400W/m2 Solar Irradiance Meter With Temperature Probe, PRO IM-09
  2. Metravi 1400W/m2 Solar Irradiance Meter With Temperature Probe, PRO IM-09

  • Product Type: Power Meter
  • Irradiance Accuracy: ±(5% + 5 Digit)
  • Operating Humidity: < 80%RH
  • Compass Accuracy: ±7°
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

12132.76 (Incl. of all taxes)

10282+ ₹1850.76 GST (18%)

MRP ₹15120

SAVE 32%



5 Business Days

1 Set

90318000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

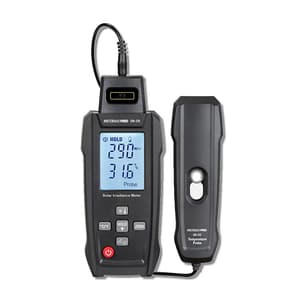

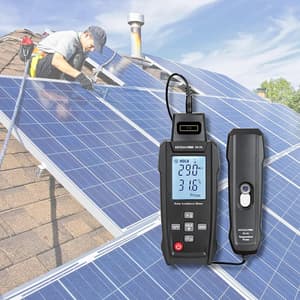

The Metravi IM-09 Solar Irradiance Meter is a pocket-sized, handheld device which is very convenient to hold & use while working on a sloping roof or even on top of a ladder. The IM-09 helps with installation and maintenance of solar panels and arrays. The IM-09 is a multifunction instrument which measures Irradiance, Temperature, Inclination Angle and has a built in compass as well. It features a backlit, large LCD and a measurement range up to 1400 W/m2 for solar power readings, built-in temperature and light irradiance sensors and automatic on/off to save battery life.

Irradiance is a measurement of Solar Power. It is basically the rate at which solar energy falls onto a surface. The unit of power is the Watts (W). Since it is a measure of power per unit area, Irradiance is typically quoted as W/m², that is, Watts per square meter. Measurement of solar irradiance has several important applications, including

  • predicting energy generation from solar power plants
  • calculating heating and cooling loads of buildings
  • climate modelling
  • weather forecasting
  • passive daytime radiative cooling applications
  • space travel


Features:

  • Simultaneous measurements and readings for Temperature & Irradiance
  • Both internal sensor & external probe sensor available
  • Selectable °C/°F units
  • Measure Tilt Angle
  • Measure Basic Direction
  • Big, backlit LCD display
  • Low Battery Indicator
  • Auto Power Off
  • Data Hold
  • Compass is user-calibratable

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.PO.00085
Product TypePower Meter
Model NoPROIM09
Irradiance Measuring Range 0 – 1400W/m2
Irradiance Resolution 1W/m2
Irradiance Accuracy ±(5% + 5 Digit)
Temperature Measuring Range -30°C to 100°C(-22°F to 212°F)
Temperature Resolution 0.1°C(0.2°F / 1°F@>100°F)
Temperature Accuracy ±1°C (±2°F) @ -10°C to 75°C (14°F to 167°F), ±2°C (±4°F) @ -30°C to -10°C (-22°F to 14°F), ±2°C (±4°F) @ 75°C to 100°C (167°F to 212°F)
Operating Temperature Probe -30°C to 100°C (22°F to 212°F), Tester -10°C to 50°CC (14°F to 122°F)
Operating Humidity < 80%RH
Storage Temperature Range 30°C to 60°C (22°F to 140°F)
Storage Humidity Range < 80%RH
Inclination Angle Measuring Range -90° to +90°
Inclination Angle Resolution 0.1°
Inclination Angle Accuracy ±1.5° @ -50 to +50°, ±2.5° @ -85° to -50° and +50° to +85°, ±3.5° @ -90° to -85° and +85° to +90°
Compass Measuring Range 0° to 360°
Compass Resolution
Compass Accuracy ±7°
Certification IP54 Dust & Splash Proof
Power 4 x AA 1.5V alkaline batteries
