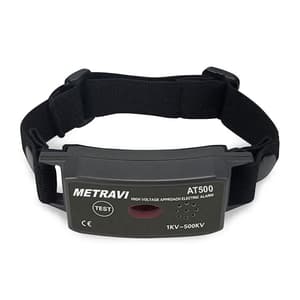

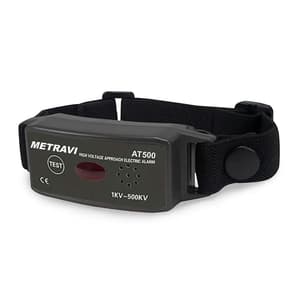

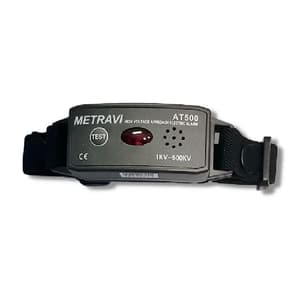

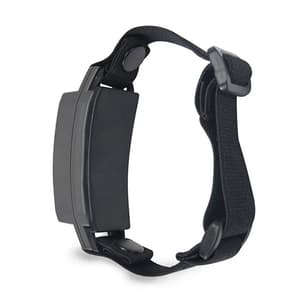

The Metravi AT500 high-voltage detector is a handy, wearable instrument, which reminds the electrical worker to pay attention to safety and avoid high voltage electric shock accidents. When the operator is wearing the alarm and gets close to a high voltage charged body within a certain distance, sound and light alarms go off, according to the safety distance of the corresponding voltage level.

This instrument can also be used for line fault detection and electroscope. Works only for single-core cables. Will not work for shielded/armoured cables.

• Provides a safe, practical, convenient, new style high voltage alarm device for high voltage approach electric operator. It is especially suitable for sites having overhead high voltage lines.

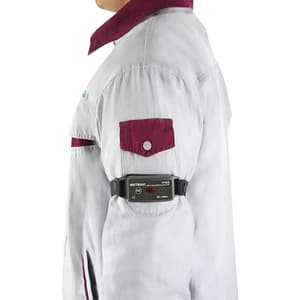

• The alarm is to be worn on the arm of the operator, and the alarm rsymbol should be pointing towards the direction of the fingertips.
• Adopts non-contact induction technology, accurate alarms, is power saving and durable with standby time up to 12 months.
• Features all-directional induction voltage power source, automatic triggerdetection mode with sound and light alarms, to ensure safety of approach for high voltage electricity workers.
• Works only for Single Core cables. Will not work on shielded or armoured cables.

Features:

• Alarm Voltage Range: 1kV ~ 500KV (high voltage alarm)
• Working Frequency: 50Hz/60Hz
• Safe, practical, convenient
• New style high voltage alarm device
• Automatic voltage detection/trigger mode
• Suitable for sites having overhead high voltage lines.
• To be worn on the arm of the operator with the alarm symbol pointing towards the direction of the fingertips.
• Non-contact induction technology
• Battery* operated with standby time up to 12 months
• All-directional induction voltage power source
• Automatic trigger-detection mode with sound and light
• Visual Alarm/Indicator : LED light (visibility under 8000LX visible light)
• Audible Alarm/Buzzer : above 60dB (from 60cms distance)
• IP54 Protection Level: Dust-proof and water-spray protection
• Works only for single-core cables.
• Will not work for shielded/armoured cables.

Voltage Level and Alarm Distance:

Voltage Level	Alarm Distance
6.6KV	0.6m
10KV	0.8m
35KV	1.4m
66KV	1.8m
110KV	2.2m
220KV	3.0m
330KV	3.6m
500KV	4.2m

What's Included In This Package:

• 1x AT500 Non-contact High Voltage Detector (Arm Type)
• 1x Plastic Coin (use for installing and replacing battery)
• 2x Battery

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
