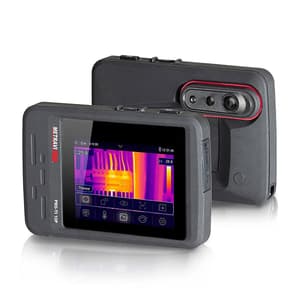

The Metravi PRO TI-10P Pocket Thermal Imager is handy, compact, handheld imaging camera, used for predictive maintenance, equipment troubleshooting and verification.

Get the power to reduce downtimes. Monitor, Troubleshoot and Analyse easily, quickly and conveniently!

• With special Fusion and Auto-Fusion modes: blends the visual image with the thermal image to enable better detection, comparision and analysis.
• IR Resoulation of 120×90 pixels enables detailed images, capturing even the smallest of temperature differences
• 50Hz Image Frequency ensures blur and distortion free images and video
• Wide Temperature Detection Range of -20° to 550°C
• Inbuilt Analysis Tools, including Centre Spot, Manual Spot, Line Analysis, Area Analysis, High-Low Spot Analysis.
• Analysis can be done on live image, captured image as well as stored image (at a later time, if required).
• Internal Storage for both images and videos using 8GB MicroSD Card
• Rechargeable and long-lasting battery

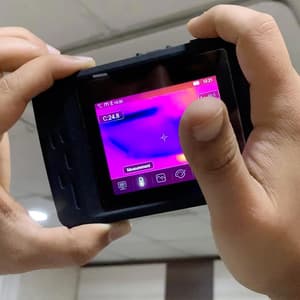

Just focus the lens towards the object, and the thermal and visual images are displayed on the LCD and can also be saved to the Micro SD Memory card. The capacitative touchscreen display lets you select and toggle features and functions easily. You can chose between Five image modes, including Fusion and Auto-Fusion modes. Features WiFi Connectivity, 8 Colour Palettes and 32x Digital Zoom.

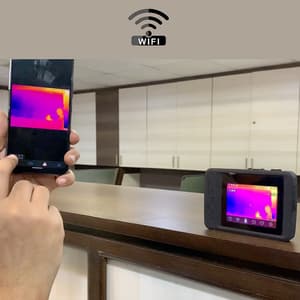

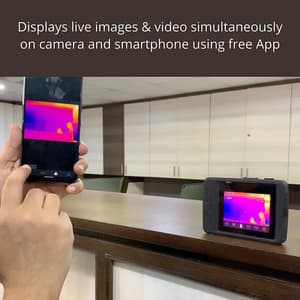

Transferring images to a PC can be done by removing the MicroSD memory card and connecting it to a PC through the included card reader, or use the free App to transfer the images and video stream to your Smart Devices. Provides video recording with audio and playback function.

Features:

• Object Temperature Range: -20° to 150°C (4° to 302°F) / 0° to 550°C (32° to 1022°F)
• Accuracy ±2°C (3.6°F) or ±2% of reading (Environment temperature 10-35°C; Object temperature >0°C)
• Field of View (FoV)/Minimum Focus Distance: 50°x 37°/ 0.5m
• Thermal Sensitivity/NETD: <0.05°C at 30°C (86 °F)/ 80mK
• Focus Free
• Zoom: 1-32x continuous, Digital Zoom
• Focal Plane Array (FPA)/Spectral Range: Uncooled microbolometer/8-14μm
• Display: 3.5 inch Touchscreen Display, 640×480 pixels
• Image Modes: IR Image, Visual Image, Picture in Picture, Auto-fusion
• Colour Palettes: Iron. Rainbow, Grey. Grey Inverted. Brown, Blue-Red, Hot-Cold. Feather, Above Alarm. Below Alarm. Zone Alarm. Vision Zone
• Center Spot, Three Manual Spots
• Automatic Hot/Cold Markers
• Analysis: Three Area Analysis, Two Line Analysis
• Measurement Corrections: Emissivity. Reflected temperature, Ambient temperature. Atmospheric humidity. Infrared compensation. Distance compensation
• Storage Media: 8GB MicroSD card and 3.4GB internal EMMC
• Video Storage Format: Standard MPEG-4 encode. 640×480 at 30fps, on memory card >60 minutes
• Simultaneous storage of IR and visual images
• Image Storage Format: Standard JPEG or HIR files including measurement data, on memory card >6000 pictures
• Internal image analysis tools. Complete function.
• Interfaces: USB Type C and WiFi Data transfer between camera and PC. Live video on camera and PC.
• Battery: Li-Ion battery, 4 hours operating time
• Auto Power-off
