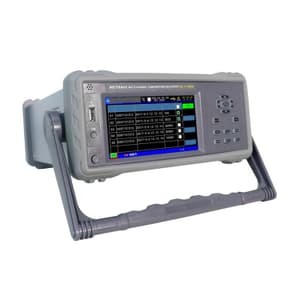

The Metravi DL-T-2000 Multi Channel Temperature Data Logger uses 32-bit high-speed MCU data processing + 24-bit high-speed AD measurement chip for fast response speed and high precision. It is a stable and reliable instrument with multi-interface display, file list, real-time list display, histogram display, real-time/record/analysis curve display, alarm list, system Settings, etc. Featuring in-built operation tips, humanised design and easy to understand and simple operation, it supports multiple sensor inputs: K J E T N S R B. It comes with a basic measurement accuracy of ±0.2°C+ 2dgt (without sensor), cold end compensation accuracy: 0.5°C, an independent error correction per channel Y=KX+B, each channel can be set to use different thermocouple types.

The record files can be selected to delete and export to USB flash drive or PC directly. You can export EXCEL files. USB and RS485 communication ports are standard. The Metravi DL-T-2000 comes in a modular design, each module consisting of 8 channels, supporting a maximum of 64 channels, with automatic capacity expansion identification. Features a multi-level alarm indicator, HH, H, L, LL alarm settings and alarm indicator, and has the function of historical alarm record.

Features:

• Can be used as a U disk
• 32 channels displayed simultaneously
• One-second interval
• Can record for 97 days
• One click fast recording
• List, curve, histogram display
• Remote Firmware upgrade
• Strong anti-jamming
• Record files can be exported or deleted at any time
• Customizable channel names
• Export EXCEL files
• Multistage alarm function
• Double relay output
• Can use 8 different thermocouples at the same time

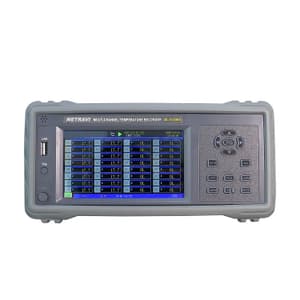

• Display: 5″ TFT true colour LCD industrial touch screen 854*480 pixels
• Forms of Display: Real-time list, curve (historical curve), bar chart, current alarm (historical alarm), file record list

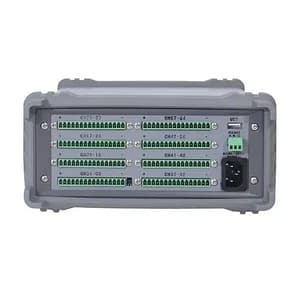

• No. of Channels: Each module supports 8 channels and a maximum of 64 channels
• Cold end compensation
• Correction: Independent error correction per channel Y=kx+b (x= measured value)
• File Capacity: One file can record 130,000 groups (without distinguishing the number of channels)
• Alarm Sound: All the buzzer sounds (any alarm sounds, can be muted)

Package Content:

• Power Cord,
• USB Cable,
• One 8 Channel Module

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
