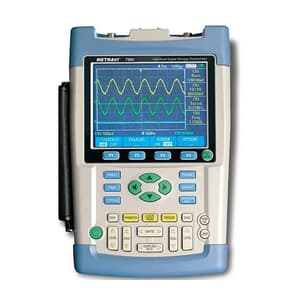

The Metravi 7200 is 200MHz Digital Storage Oscilloscope, color display, with 2 Channel Digital Multimeter with PC Interface cable and software, sampling rate 1GSa/Sec

Features:

• A unique combination of Digital Storage Oscilloscope + Recorder + Multimeter
• Vertical Dual Channel Input, bandwidth 200MHz
• Sweep Base Time Velocity: 50s/div ~ 2.5ns/div
• Real Time Sampling Rate 100MSa/Sec
• Equivalent Sampling Rate 10GSa/Sec
• Playback, Zoom and Cursor measurement facility
• Auto measure of Waveform parameters
• Waveform math calculations
• Auto, Edge, External, Video, Pulse Width Trigger Modes
• RS-232 PC Interface facility
• Storage of waveform and measured value
• Vertical Deflection Factor: 2mV/Div ~ 50V/Div in steps of 1 – 2 – 5
• Rise Time < 2ns
• Channel Isolation > or = 30:1
• Horizontal Time Base: 2.5nS/Div to 50S/Div
• 10 Storage locations to store 2 waveforms in each location
• Number of records that can be stored is 2

What's Included In This:

• 1x Test Leads
• 1x Holster
• 1x Battery
• 1x Instruction Manual
• 1x RS-232 PC interface cable & software

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
