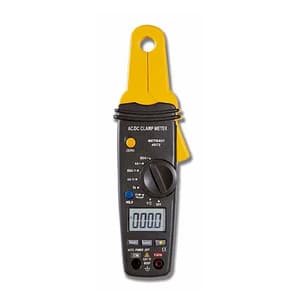

Metravi 3-3/4 Digit / 0 – 400mV Digital AC/DC Leakage Current Clamp Meter, DT-4672
- Weight: 0.2 Kg
- Product Type: Leakage Testers
- DC Voltage Range: 0 – 400mV / 4V / 40V / 400V / 600V
- DC Current Range: 0–4A/80A
- Capacitance Range: 0–40nF/400nF/4uF/40uF/100uF
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹7555.54 (Incl. of all taxes)
₹6403+ ₹1152.54 GST (18%)
MRP ₹9416
SAVE 32%
5 Business Days
1 Pcs
930303390
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
AC/DC Leakage Current Clamp Meter 3-3/4 Digits, LCD, Data Hold, 23mm Jaw Size, AC/DC Voltage, AC/DC Leakage Current measurement, Capacitance, Resistance, Frequency, Duty Cycle, Diode & Continuity Test.
Safety:
For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than overvoltage Cat III
Features:
- Data Hold Function
- Auto Power Off
- Diode & Continuity test
- High Precision AC/DC Low Current Measurement
- Low battery and Overload Indication
- Provides Analogue Output for Recording function.
- Confirms to CE, CAT-III 600V
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.LE.00013 |
|---|---|
| Product Type | Leakage Testers |
| Model No | DT4672 |
| Display | Backlit LCD |
| Colour | Yellow-Black |
| Duty Cycle Range | 0.5% to 99% |
| Jaw Dia | 23 mm |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AAA |
| DC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 600V |
| AC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 600V |
| DC Current Range | 0–4A/80A |
| AC Current Range | 0–4A/80A |
| Resistance Range | 0 – 400 / 4k / 40k / 400k / 4M / 40M Ohms |
| Capacitance Range | 0–40nF/400nF/4uF/40uF/100uF |
| Frequency Range | 0–5Hz/50Hz/500Hz/5kHz/50kHz/500kHz/5MHz/10MHz |
| DC Voltage Accuracy | ±1% |
| AC Voltage Accuracy | ±1.0% |
| DC Current Accuracy | ±2.8% |
| AC Current Accuracy | ±3.0% |
| Resistance Accuracy | ±1.0% |
| Capacitance Accuracy | ±3.0% |
| Frequency Accuracy | ±1.2% |
| Certifications | CAT-III 600V, CE, IEC-61010-031 |
