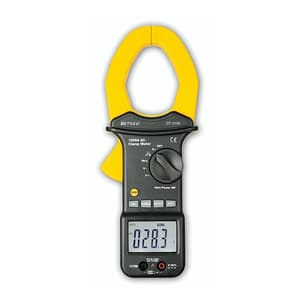

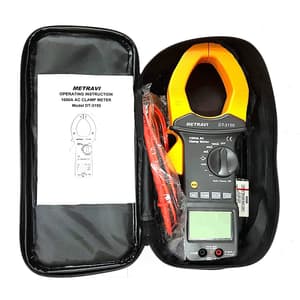

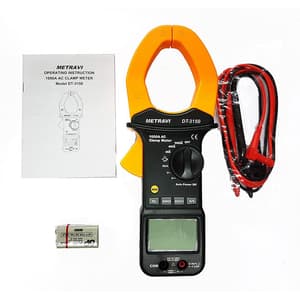

The DT-3150 Digital Clamp Meter has 3-3/4 Digits, Backlit LCD, Fully Protected, Data Hold, 55mm Jaw Size, AC/DC Voltage, AC Current up to 1000A, Resistance, Capacitance, Frequency, Duty Cycle, Diode and Continuity Test Facility. 1000V DC/AC Protection in all ranges.

Features:

• Clamp size : Opening 55mm approx
• Diode Test : Test current of 0.3mA typical, Open circuit voltage 1.5V DC typical
• Continuity Check : Threshold <1002, Test current < 1mA
• Low Battery Indcation : Symbol is displayed
• Overrange Indication : "OL" is displayed
• Measurements Rate : 2 per second, nominal
• Input Impedance : 10 MOhm (VDC and VAC)
• Display : 3-3/4 digits, 4000 counts Backlit LCD
• Data Hold : To Freeze the displayed data
• AC Current : 50/60Hz (AAC)
• AC Voltage bandwidth : 50-400Hz (VAC)
• Operating Temperature : -14 to 122°F (-10 to 50°C)
• Storage Temperature : -14 to 140°F (-30 to 60°C)
• Relative Humidity : 90% (0°C to 30° C ), 75% (30°C to 40°C), 45% (40°C to 50°C)
• Altitude : Operating: 300m; Storage 10,000m
• Over voltage : Category III 1000V, Category IV 600V
• Auto OFF : Approx. 30 minutes
• Safety : For indoor use and in accordance with Overvoltage Category II, Pollution Degree 2. Category II includes local level, appliance, portable equipment, etc., with transient overvoltages less than overvoltage Cat III
• Auto Ranging
• Relative Measurement.
• Overload Indication
