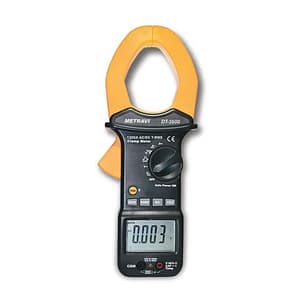

Metravi 3-3/4 Digit / 1200A Digital Auto-Ranging TRMS AC/DC Clamp Meter, DT-3600
- Product Type: Clamp Meters
- Duty Cycle Range: 0.5% to 99%
- AC Voltage Range: 0-4V/40V/400V/1000V
- DC Current Range: 0–400A/1200A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹8232.86 (Incl. of all taxes)
₹6977+ ₹1255.86 GST (18%)
MRP ₹10260
SAVE 32%
5 Business Days
1 Pcs
90303390
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
3-3/4 Digits 41 segment Backlit LCD, Data & Peak Hold, Auto-ranging, 52mm Jaw Size, DC/AC T-RMS Voltage,1200A DC/AC T-RMS Current, Frequency, Temperature, Capacitance, Resistance, Duty Cycle, Diode and Continuity Test Facility, 600V AC/DC Protection on all ranges, Frequency through voltage and Current measurement possible, Auto Power Off, Confirms CAT-III 600V & CAT-IV 1000V
Safety:
For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Over voltage Category III 1000V and Category IV 600V, Pollution Degree 2
Features:
- Auto-ranging AC/DC T-RMS Clamp meter
- Auto Power Off
- Peak Hold and Data Hold facility
- Low Battery Indication
- Overload Indication
- Display: 3-3/4 Digits 3999 Counts Backlit LCD with analogue bargraph
- Frequency Measurement while measuring current
- Relative Measurement facility
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.CL.00062 |
|---|---|
| Product Type | Clamp Meters |
| Model No | DT3600 |
| Display | Backlit LCD |
| Colour | Yellow-Black |
| Bargraph | Analogue Bargraph |
| Duty Cycle Range | 0.5% to 99% |
| Jaw Dia | 52 mm |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| No of Batteries | 1 |
| Battery Size | 9V |
| DC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 1000V |
| DC Voltage Accuracy | ±1% |
| AC Voltage Range | 0-4V/40V/400V/1000V |
| AC Voltage Accuracy | ±1.2% |
| AC Current Range | 0–400A/1200A |
| AC Current Accuracy | ±3.0% |
| DC Current Range | 0–400A/1200A |
| DC Current Accuracy | ±3.0% |
| Resistance Range | 0 – 400O / 4kO / 40kO / 400kO / 4MO / 40MO |
| Resistance Accuracy | ±1.0% |
| Temperature Range | -20°C to 1000°C |
| Temperature Accuracy | ±3% |
| Peak Current | 400A/1200A |
| Capacitance Range | 0-4nF/40nF/400nF/4uF/40uF/400uF |
| Capacitance Accuracy | ±3.5% |
| Frequency Range | 10Hz to 100kHz |
| Frequency Accuracy | ±1.0% |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 1mV to 1V |
| AC Current Resolution | 100mA to 1A |
| DC Current Resolution | 100mA to 1A |
| Resistance Resolution | 0.1O to 10kO |
| Temperature Resolution | 0.1°C |
| Capacitance Resolution | 1pF to 0.1uF |
| Certifications | CAT III 1000V, CAT IV 600V, EN-61010-1, IEC 1010-1, Pollution Grade 2 |
