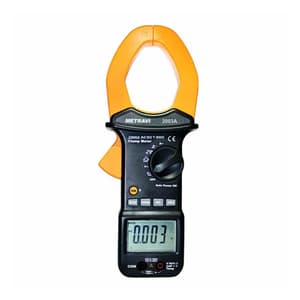

Metravi 3-3/4 Digit / 2000A Digital TRMS AC/DC Clamp Meter, 2003A
- Weight: 0.6 Kg
- Product Type: Clamp Meters
- Jaw Dia: 52 mm
- AC Voltage Range: 0-4V/40V/400V/1000V
- AC Current Range: 0-400A/2000A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹10182.22 (Incl. of all taxes)
₹8629+ ₹1553.22 GST (18%)
MRP ₹12690
SAVE 32%
5 Business Days
1 Pcs
90303390
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
The Metravi 2003A is a Digital AC TRMS/DC clamp meters with big jaw dia which can be used anywhere that high current and voltage measurements are needed. The unique feature of the 2003A is that it can measure Frequency through the Clamp Jaw, so it can measure the frequency at high current as well. It becomes very safe to take frequency measurements as you do not need to touch high current lines with probes to get frequency measurements.
Safety:
For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Over voltage Category III 1000V and Category IV 600V, Pollution Degree 2
Features:
- Auto Power off
- Auto/Manual Ranging
- Data Hold
- Peak Hold
- True RMS
- Low Battery Indication
- Overload Indication
- Diode and Continuity
- CAT III 1000V, CAT IV 600V
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.CL.00067 |
|---|---|
| Product Type | Clamp Meters |
| Model No | 2003A |
| Display | Backlit LCD |
| Colour | Yellow-Black |
| Jaw Dia | 52 mm |
| Duty Cycle Range | 0.1% to 99.9% |
| Sampling Time | 2 times/sec |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | 9V |
| No of Batteries | 1 |
| DC Voltage Range | 0 – 400mV / 4V / 40V / 400V / 1000V |
| AC Voltage Range | 0-4V/40V/400V/1000V |
| AC Current Range | 0-400A/2000A |
| DC Current Range | 0-400A/2000A |
| Resistance Range | 0 – 400O / 4kO / 40kO / 400kO / 4MO / 40MO |
| Frequency Range | 10Hz to 100kHz |
| Capacitance Range | 0-4nF/40nF/400nF/4uF/40uF/400uF |
| Peak Current | 400A/2000A |
| Temperature Range | -20°C to 1000°C |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 1mV to 1V |
| AC Current Resolution | 100mA to 1A |
| DC Current Resolution | 100mA to 1A |
| Resistance Resolution | 0.1O to 10kO |
| Temperature Resolution | 0.1°C |
| Capacitance Resolution | 1pF to 0.1uF |
| Temperature Accuracy | ±3% |
| DC Voltage Accuracy | ±1% |
| AC Voltage Accuracy | ±1.2% |
| AC Current Accuracy | ±3.0% |
| DC Current Accuracy | ±3.0% |
| Resistance Accuracy | ±1.0% |
| Frequency Accuracy | ±1.0% |
| Capacitance Accuracy | ±3.5% |
