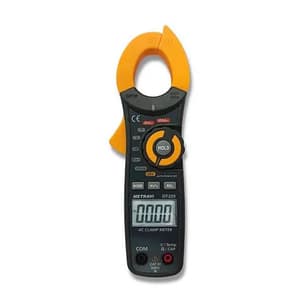

The DT-225 Multimeter has 3-3/4 Digits, Data Hold, Relative Measurement, 30mm jaw size, CAT-III 600V, AC/DC Voltage, AC Current up to 400A, Resistance, Capacitance, Frequency & Temperature, Continuity & Diode Test.

Features:

• Clamp size : Opening 1.2" (30mm) approx
• Diode Test : Test current of 0.3mA typical; Open circuit voltage 1.5V DC typical.
• Continuity Check : Threshold <1502; Test current < 0.5mA
• Low Battery Indication : The symbol is displayed
• Overrange Indication : "OL" is displayed
• Measurements Rate : 2 per second, nominal
• Input Impedance : 10MOhm (VDC and VAC)
• Display : 4000 counts LCD, 3-3/4 Digits
• AC Current : 50-60Hz (AAC)
• AC Voltage bandwidth : 50-400Hz (VAC)
• Operating Temperature : 41 to 104°F (5 to 40°C)
• Storage Temperature : -4 to 140°F (-20 to 60°C)
• Operating Humidity : Max 80% up to 87°F (31°C) decreasing linearly to 50% at 104°F (40°C)
• Storage Humidity : <80%
• Operating Altitude : 7000ft. (2000meters) maximum.
• Over voltage : Category III 600V
• Non-contact voltage detector : Glows when near live conductor
• Auto OFF after approx. 30 minutes
• Data Hold
• Auto Ranging
• Relative Measurement
• Diode & Continuity
• Sampling rate 2 times/sec
• Non-contact Voltage Detection

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
