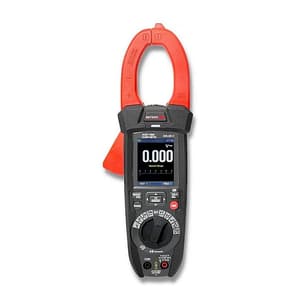

The Metravi PRO Solar-3 is a professional T-RMS Industrial Clamp Meter with TFT Colour Display, featuring fast A/D Converter and high accuracy. Makes it easy to find and solve problems in production equipment with Trend Capture and helps with Bluetooth data transfer & analysis reports using free App on your Smartphone. Ensures safe measurements with double-moulded plastic housing, IP65 waterproof certification, CATIV 600V, CATIII 1000V & CATII 1500V categorisation. Measures upto 1500V DC measurement, and hence, is most suitable for Solar and Photovoltaic Applications. In-rush current, VFD and LoZ measurement functions make it a must for all Motor Applications too.

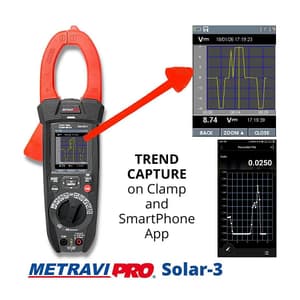

The Metravi PRO Solar-3 features Trend Capture – when trying to see the variations in the current or voltage drawn over a period of time, just clamp the meter (in case of current) or connect the meter to the load voltage (in case of voltage) and leave the meter there for a period of time to see how the parameters changing with respect to time. Innovative and useful feature in a clamp meter when you want to see how changes in the load changes the current values or how changes in the load effects the voltage!

Features:

• 6000 Counts 2.4” TFT Colour LCD display
• DC Current 1000A
• AC, AC+DC TRMS Current 1000A
• DC Voltage 1500V
• AC, AC+DC TRMS Voltage 300.0V
• Resistance and Continuity Test
• Diode & Continuity Test
• Data Logging
• Dust & Water Proof IP65
• Variable Frequency Drive
• Low Impedance Mode
• Capacitance 100.0mF
• Frequency 10.00MHz
• Duty Cycle
• Temperature with K-type Probe -40.0° to 600.0°C
• Flexible Coil for measuring upto 3000A
• Inrush Current Measurement
• LoZ Voltage measurement
• VFD Measurement
• Auto Power Off
• Data Hold / Relative measurements
• In-built Flashlight to access dark areas
• Rechargeable battery and battery charger
• Non-contact Voltage Detection (NCV)
• Data Logger with Date and Time stamp
• Bluetooth and free App for sharing, recording & analysing
• Trend Capture on device and Smartphone (through Bluetooth)
• Record variation of parameters with respect to time
• IP65 dust-proof, waterproof and shock-proof
• Safety: IEC/EN61010. EMC: IEC/EN61326-1
• Over-voltage Protection: CATIV 600V, CATIII 1000V, CATII 1500V

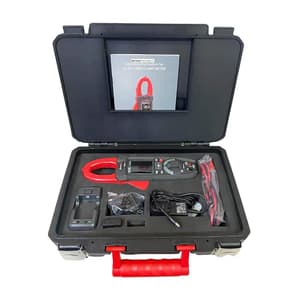

What's Included In This Package:

• Hard Carrying Case
• Battery, Charging Adaptor & cable
• Rechargeable Battery
• K-type Thermocouple Probe Set
• High-quality Test Leads

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
