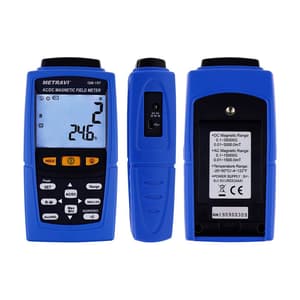

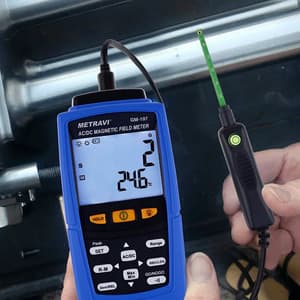

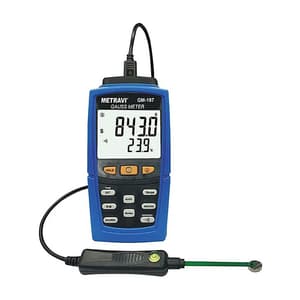

Gauss Meter for both static and electromagnets, DC and AC (40-500Hz), determines N/S polarity of Static Magnets, can measure intensity of magnetic fields in both Gauss and Tesla, measures up to 0~3000mT(milli Tesla) / 0~30000G (Gauss), Relative / Peak Hold / Real-time Zero function.

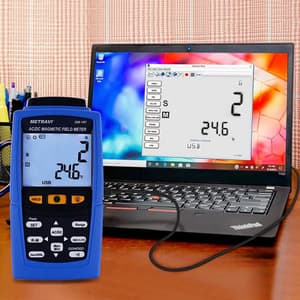

Has Auto Range, Data Hold, MAX/MIN Hold, GO & NO-GO alarms and alarm value set up function, production testing. Has capacity for 200 manual records and 6000 auto data logging. The interval can be set up using a PC. USB interface to share data with PC and application software with real-time function.

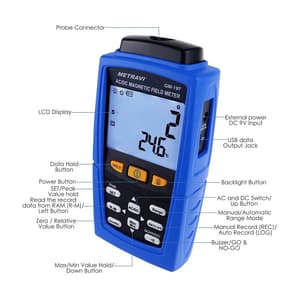

Features:

• Auto Range
• DATA HOLD
• MAX/MIN hold
• Unit Conversion : 1mT=10G(Gauss)
• GO / NO-GO Alarm, the value can be set by the user for Production testing
• Can measure DC and AC(40~500Hz) magnetic field
• Can display the N/S polarity of DC magnets
• Operating temperature and humidity: 5°C ~ 40°C
• External AC 100 ~ 240V to DC 9V/0.5A power supply
• Auto Datalogging Memory: 6000 records, the interval can be set from PC
• Measurement for the residual magnetic field after processing of mechanical parts
• Measures the intensity of magnetic field in magnetic application products
• Measurement for the residual magnetic field generated from the stress after processing of stainless material
• Measures the magnetic force of magnetizable material
• Can measure the natural magnetism of various steel products n Measures the magnetic field of motors and other home appliances
• Measure the Magnetic Field Intensity of Permanent Magnets
• Detection for the magnetic field of leakage generated from superconductive magnets
• Measures the Temperature along with the magnetic intensity, simultaneously
• Minimum/Maximum Average automatic Calculation: Once the data is transferred to the computer the software will calculate the Minimum/Maximum Average from the Top 10 Maximum / Minimum / Average readings
• Backlight display: The backlight is manually turned on (it will turn off automatically after turned on for 30 seconds) and turned off. If connected via an external power supply, the backlight will lit and stay on; it will turn off until the external power supply disconnected
