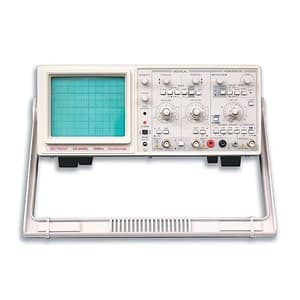

30MHz Dual Channel Dual Trace Cathode Ray Oscilloscope with component test facility, comes complete with 1:1 and 10:1 probes. This is a portable kind of oscilloscope for two traces. The bandwidth of 30MHz is 0-30MHz. its vertical deflection factor is 5mV/div and to 1mV/div by Magnification. Full bandwidth sweeping circuit is used in the sweeping system. The flexible and convenient triggering mode has the functions for selecting signals from one channel or triggered by Ext signals. And there is another function of ALT trigger to observe signals from two irrelative channels.

The instrument has the functions of TV-H, TV-V synchronization and trigger-lock to observe all kinds of signals stably. And from the terminal for trigger input, CH1 and CH2 signals can be output along with the triggering channel to connect the Ext frequency counter. The instrument is of easy operation with comfortable controls. Its reasonable structure and technology makes it conveniently to repair and calibrate.

Component Test: Component tester is the special circuit with which a single component or components in or out of actual circuit board can be easily tested requiring no power to drive the circuit.

Features:

• Dual Trace Dual Channel Oscilloscope with Component Test Facility
• Full bandwidth sweeping circuit is used in the sweeping system
• The flexible and convenient triggering mode has the functions for selecting signals from one channel or triggered by Ext signals
• ALT trigger to observe signals from two irrelative channels
• The instrument has the functions of TV-H / TV-V synchronization and trigger-lock to observe all kinds of signals stably
• From the terminal for trigger input, CH1 and CH2 signals can be output along with the triggering channel to connect the Ext frequency counter
• Y deflection operation: Y1, Y2, ALT, CHOP, ADD, mode X-Y
• Vertical Deflection: 5mV/Div to 20V/Div in factor 1-2-5 sequence in 12 steps
• Maximum Input Voltage: 400V (DC +ACp-p)
• Triggering Source: Y1, Y2, ALT, POWER, EXT
• Trigger Coupling: AC/DC (EXT), NORM/TV-H, TV-V
• Horizontal Sweep Mode: AUTO, TRIG, LOCK, SINGLE
• Sweep time factor: 0.1uS/div to 0.2s/div in 1-2-5 sequence in 20 steps
• X-Y Mode input: X-Axis YI and Y-Axis Y2
• Z Axis minimum input level: TTL Level
• Component Test Facility
• Calibration Signal: Square wave of 0.5V at 1kHz

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
