The Metravi Pro 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger combines the traditional electrical measurement capabilities of a clamp meter with the real-time waveform visualisation of an oscilloscope. This hybrid device provides deeper diagnostic insights, making it particularly useful in various complex electrical troubleshooting and analysis scenarios. Real-Time Waveform Analysis helpful for diagnosing non-linear loads or irregular waveforms caused by harmonic distortions, which are common in industrial and commercial equipment. Advanced Troubleshooting for Power Quality Issues is possible and the user you can identify and address these issues promptly to prevent potential damage or inefficiency in equipment. The Metravi Pro 475 provides detailed inrush current measurements, capturing the initial surge of current when equipment starts up.

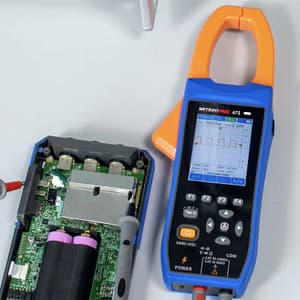

This is valuable for motors, compressors, and transformers, where inrush can affect performance or indicate malfunction. In applications such as motor drives or variable frequency drives (VFDs), monitoring PWM signals is essential for tuning and troubleshooting. The built-in Oscilloscope enables visualisation of the signal waveform, helping in identifying pulse issues or improper signal shaping. Detailed Analysis of DC Systems is possible with one single meter, especially in EVs or renewable energy setups, as this device can visualise ripple voltage and other irregularities that may indicate issues with DC-DC converters, battery health, or other components. The Metravi Pro 475 TRMS AC/DC Clamp Meter with Oscilloscope and Datalogger is a versatile tool, enhancing the capability of standard clamp meters by providing visual insight into waveforms and enabling more precise diagnostics.

Features:

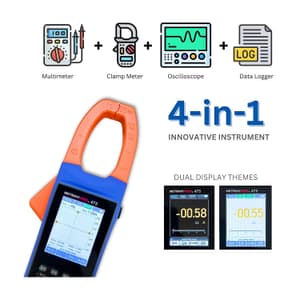

• Multi-functional Usage: A 4-in-1 innovative experience which combines TRMS Clamp Meter, Multimeter, Oscilloscope, and Data Recorder functions to suit various measurement needs.
• High Accuracy: Ensures precise reading with high accuracy across voltage, current, resistance, and frequency measurements.

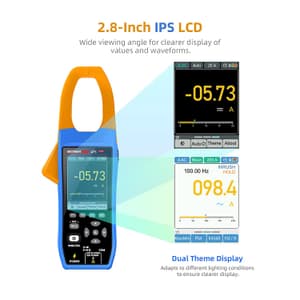

• Easy-to-Read Display: Features a large, clear screen for easy viewing of measurement results and waveforms.

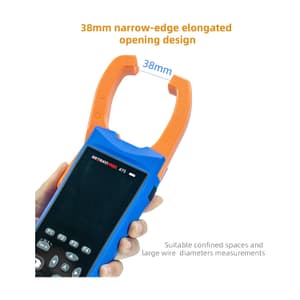

• Narrow-edge Jaw Opening: A 38mm elongated jaw opening design makes it suitable for confined spaces as well as large wire dimensions.
• Robust Input Protection: Equipped with comprehensive input protection to protect the device and the user.

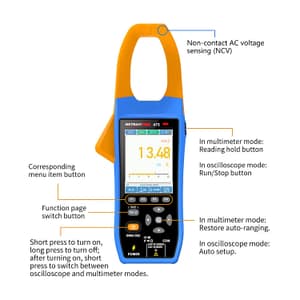

• User-Friendly Interface: Intuitive design with simple button layout for convenient operation and quick access to functions.

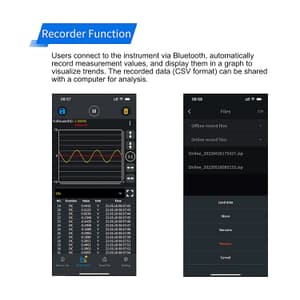

• Bluetooth & Smartphone App: Helps automatically record measurement values and display them in a graph to visualise trends. The recorded data can be shared in csv format.

Applications:

• Industrial and Commercial Electrical Maintenance: Identifying power quality issues, harmonics, and diagnosing equipment faults.
• Automotive and EV Systems: Monitoring inrush currents, ripple voltage, and PWM signals in high-voltage DC systems.
• Renewable Energy: Visualising power irregularities and optimising system performance in Solar PV installations and battery storage systems.
• Data Centers and Telecom: Ensuring the integrity of high-voltage DC and AC systems, monitoring phase balance, and ensuring signal stability.

Accuracy:

DC Current	± (2.0% + 5 dig)
AC Current	± (2.5% + 5 dig)
DC Voltage	± (0.1% + 5 dig)
AC Voltage	± (0.6% + 10 dig)
Inrush Current	± (10.0% + 10 dig)
Resistance	± (0.3% + 10 dig)
Capacitance	± (3.0% + 10 dig)
Frequency	± (0.1% + 5 dig)

Technical Data for Oscilloscope & Data Logger:

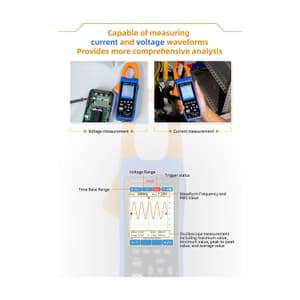

Oscilloscope

Analogue Bandwidth: Voltage 1MHz, Current 1kHz Real-time Sampling Rate: 5.0 MSa/s Input Impedance: ≥10 MΩ Time Base Accuracy: ± (0.01 % + 0.1 div) Sensitivity: 30 mV/div – 500 V/div Sensitivity Accuracy: ± (5% + 0.2 div) Measurement Values: Rms, Freq, Max, Min, PK-PK, Avg Trigger Mode: Auto Trigger Type: Rise, Fall

Data Logger

Record function Recall function Data transfer to Smartphone via Bluetooth Free Smartphone App for Data & Trend Analysis
