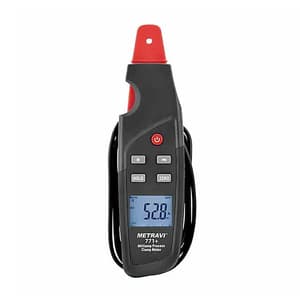

Metravi 4 - 20 mA DC Digital Milliamp Process Clamp Meter, 771+
Roll over image to zoom zoom_in
- Weight: 0.28 Kg
- Product Type: Clamp Meters
- DC Current Range: 2mA to 20mA
- DC Current Accuracy: ±0.3%
- Jaw Dia: 4.5 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹24454.32 (Incl. of all taxes)
₹20724+ ₹3730.32 GST (18%)
MRP ₹30476
SAVE 32%
5 Business Days
1 Pcs
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

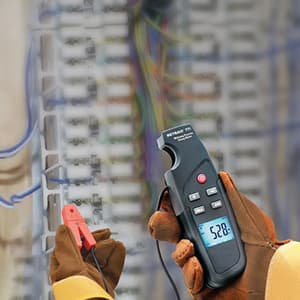

The Milliamp Process Clamp Meter is a hand-held battery-operated clamp meter that measures 4-20 mA DC without breaking the electrical circuit. Unlike conventional clamp meters, the Meter features a remote jaw that is connected to the main body via an extension cable.
Features:
- Hand-Held, Milli Amp Process Clamp Meter
- 4-20 mA DC measurement without breaking the electrical circuit

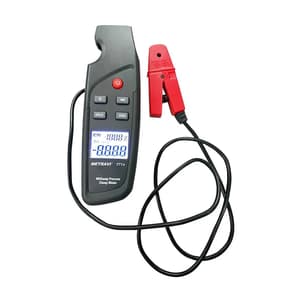

- With removable jaw connected to the body using an extension cable
- Battery Operated
- Auto Power Off
- High Precision
- Built-in flashlight to access dark areas with ease
- Jaw Dia: 4.5mm
- Current Ranges 0mA ~ ±20.99mA / ±21.0mA… ±99.9mA
- Resolution: 0mA~ ±20.99mA: 0.01mA , ±21.0mA~ ±99.9mA: 0.1mA
- Accuracy : 0mA~ ±20.99mA: 0.3% reading ±8 digits , ±21.0mA~ ±99.9mA: 1% reading ±8 digits
- Percentage Span display feature for 4 to 20 mA Loops
- Data Hold
- Zero Button
- Encapsulation: IP 40
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.CL.00097 |
|---|---|
| Product Type | Clamp Meters |
| Model No | 771+ |
| Display | Backlit LCD |
| Colour | Black-Red |
| Flashlight | Flashlight for working in dark areas |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AA |
| No of Batteries | 2 |
| Drop Tested | Drop Tested up to 1 Mtr |
| DC Current Range | 2mA to 20mA |
| DC Current Accuracy | ±0.3% |
| AC Noise Rejection | =5Hz |
| Jaw Dia | 4.5 mm |
| Certifications | CAT-II 300V, CE, EN 61326-1, IEC / EN 61010-2-032, IEC-61010-1 |
