4-3/4 Digits, Analogue Bargraph, T-RMS, Backlit LCD, Autoranging, Fully protected, Data & Peak Hold, Max/Min Record, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Temperature, Non Contact type Infra Red Thermometer, Duty Cycle, Diode & Continuity Test. Confirms to CAT IV 600V.

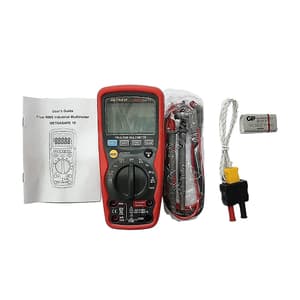

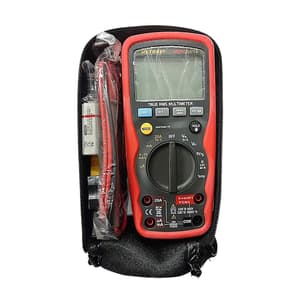

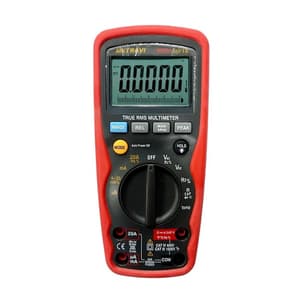

This meter measures AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency (electrical & electronic), Duty Cycle, Diode Test, and Continuity. Temp by K-type probe and infra red sensor. It features a waterproof, rugged design for heavy duty use. Proper use and care of this meter will provide many years of reliable service.

Features:

• Fully Protected DMM
• 1200V DC/AC RMS Protection in Voltage Ranges.
• 20A DC/AC RMS Protection in Ampere Ranges.
• 1000V DC/AC RMS Protection in Resistance, Capacitance, Frequency, Temperature, IR Temp. measurement, Diode and Continuity Test.
• “O” Ring Seal Body
• Dust & Water Proof IP-67 Protection
• Surge Protection of 8kV peak IEC-61010
• T-RMS measurement
• Overload Indication
• Low Battery Indication
• Relative Measurement
• Data Hold and Peak Hold Facility
• MAX / MIN recording facility.
• Auto Power Off
• Display: 4-¾ Digits 40,000 Count Backlit LCD with Analog Bargraph
• DC Voltage: 0 – 400mV/4V/40V/400V/1000V
• Accuracy: ± 0.06%
• AC Voltage: 0 – 400mV/4V/40V/400V/1000V T-RMS
• Accuracy: ± 1.0%
• DC Current: 0 – 400uA/4000uA/40mA/400mA/10A
• Accuracy: ± 1.0%
• AC Current: 0 – 400uA/4000uA/40mA/400mA/10A T-RMS
• Accuracy: ± 1.5%
• Resistance: 0 – 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
• Accuracy: ± 0.3%
• Capacitance: 0 – 40nF/400nF/4uF/40uF/400uF/4000uF/40mF
• Accuracy: ± 3.5%
• Frequency: 40Hz/400Hz/4KHz/40KHz/400KHz/4MHz/40MHz/100MHz
• Accuracy: ± 0.1%
• Duty Cycle: 0.1 to 99.90%
• Accuracy: ± 1.2%
• Temperature:  -58°F to 1832°F / -50°C to 1000°C
• Infra Red Non Contact Temperature measuring Range : -30°C ~ -500°C / -22°F to 1022°F
• Process Display 4-20mA = 0 – 100%
• Diode Test and Audible Continuity Test
• Confirms to CAT-III 1000V, CAT-IV 600V, EN61010-I,CE.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
