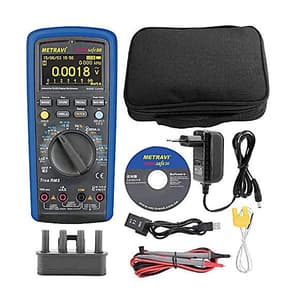

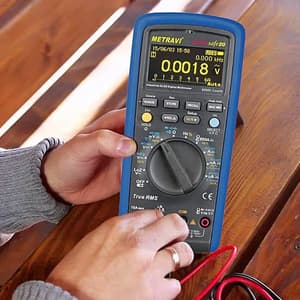

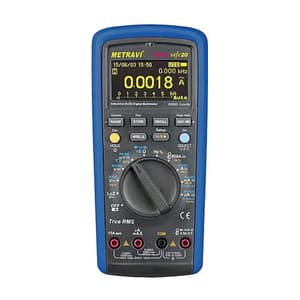

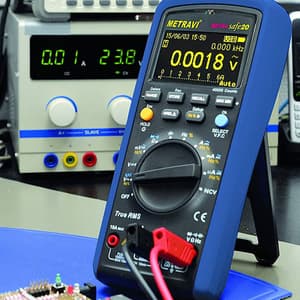

4-5/6 Digits, 60000 Counts, T-RMS Multimeter, OLED Display, 100kHz Bandwidth,0.025% Accuracy, Lo-Z measurement, AC/DC Voltage, AC/DC Current, Resistance, Process Measurement, Conductance, Capacitance, Frequency, Duty Cycle, Temperature, Diode and Continuity, Re-chargeable battery, Battery Charger, Mis-operation Alarm, Data Logger. Optional Bluetooth Interface.

The Metrasafe 20 is a new, handheld, auto-ranging, Multimeter in 4- 5/6 digit ,true virtual value which is complete in functions, high in quality & reliability, safe, with fashionable looks and has a jumbo display screen. It can measure AC/DC Voltage/Current, Resistance, Diode, NCV, Capacitance, Frequency, Duty Cycle,Temperature, % (4-20mA), Conductivity, Voltage to Frequency converter (V.F.C), NCV non-contact AC Voltage sensing. It is also equipped with functions such as 600A AC/DC current clamp measurement, programmable square-wave output, Data Storage, Mis-operation Alarm, USB Bluetooth interface configuration, etc. It is a necessary portable instrument for users in Design, Research and Repair

Safety:

The design meets the safety standards of IEC/EN61010-1, pollution level 2, overvoltage category (CAT1II1000V and CAT IV600V) and double insulation. Conforms to UL STD. 61010-1, 61010-2-030, 61010-2-033 Certified to CSA STD. C22.2 NO. 61010-1, 61010-2-030, lEe STD 61010-2-033

Features:

• 60000 Counts OLED Display
• 0.025% Basic Accuracy
• Overload protection voltage between input terminal and grounding shall be 1,000V
• Auto-Ranging
• Re-chargeable battery and battery charger
• Low Battery Indication
• 100kHz Bandwidth
• Data Logging Facility
• USB PC Interface (optional)
• Non Contact Voltage Detector
• Design meets the safety standards of IEC/EN61010-1, pollution level 2, overvoltage category (CAT1II1000V and CAT IV600V) and double insulation.
• Conforms to UL STD. 61010-1, 61010-2-030, 61010-2-033 Certified to CSA STD. C22.2 NO. 61010-1, 61010-2-030, lEe STD 61010-2-033
• Lo-Z Measurement
• DC Voltage: 0 – 600m / 6 / 60 / 600 / 1000V DC
• Accuracy: ± 0.025%
•  AC Voltage: 0-6V/60V/600V/1000V
• Accuracy: ± 0.4%
• DC Current: 0-600u / 6000u / 60m / 600m / 6A /10A
• Accuracy: ± 0.15%
• AC Current: 0-600u / 6000u / 60m / 600m / 6A /10A
• Accuracy: ± 0.75%
• Resistance: 0-600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
• Accuracy: ± 0.05%
• Conductance: 60.00nS
• Capacitance: 0-6nf / 60nF /600nF/6uF/60uF/600uF/6mF / 60mF
• Accuracy: ± 2.5%
• Frequency: 0-9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/10MHz
• Accuracy: ± 0.01%
• Duty Cycle: 1.0% – 99.0%
• Accuracy: ± 3.0%
• Temperature: -40°C to +1000°C / -40°F to +1832°F
• Accuracy: ± 1.0%
• Square wave output
• Diode Test and Audible Continuity Test

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
