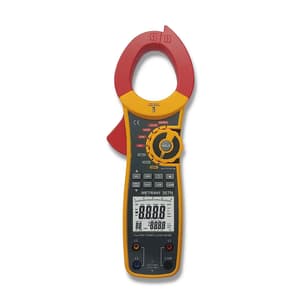

Metravi 4 Digit / 1000A Digital Clamp On Power Meter With PC Interface For Single & Three Phase Loads, 307 N

Shop all Metravi

SKU: ME.EL.CL.00078

Model: 307N

Roll over image to zoom zoom_in
  1. Metravi 4 Digit / 1000A Digital Clamp On Power Meter With PC Interface For Single & Three Phase Loads, 307 N
  2. Metravi 4 Digit / 1000A Digital Clamp On Power Meter With PC Interface For Single & Three Phase Loads, 307 N
  3. Metravi 4 Digit / 1000A Digital Clamp On Power Meter With PC Interface For Single & Three Phase Loads, 307 N
Visit Metravi Store keyboard_double_arrow_right
  • Product Type: Clamp Meters
  • Jaw Dia: 56 mm
  • AC Voltage Range: 0–100V/400V/750V
  • AC Current Range: 0–40A/100A/400A/1000A
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹10995.24 (Incl. of all taxes)

₹9318+ ₹1677.24 GST (18%)

MRP ₹13703

SAVE 32%

5 Business Days

1 Pcs

90308990

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

4 Digits, Dual LCD, Single Phase and Three Phase, Max /Min / Peak Hold, 55mm Jaw Dia, T-RMS, AC Voltage, AC Current up to 1000A, KW, KVA, KVAR, Power Factor, Phase Angle, KWh, Frequency and Temperature. With Data Logging and PC Interface.


Safety Information:

  • This Meter complies with the standards IEC61010: in pollution degree 2, overvoltage category (CAT. III 600V, CAT IV 300V) and double insulation.
  • CAT. Ill: Distribution level, fixed installation, with smaller transient overvoltages Iha CAT. IV CAT.IV: Primary supply level, overhead lines, cable systems etc


Features:

  • Measures Power and Energy for single phase and three phase loads
  • Auto-ranging
  • Data Logging up to 99 Data
  • Sleep Mode
  • Low Battery Indication
  • Clamp Jaw Dia: 56mm
  • Confirms to CAT III 600V, IEC 61010, CAT IV 300V
  • Non Contact Voltage Detector
  • Data Hold, Max / Min record
  • USB PC Interface
  • Display; 4 digits Triple Backlit LCD Display with analogue bargraph


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.CL.00078
Product TypeClamp Meters
Model No307N
Display Backlit LCD
Data Logging 99 Records
Jaw Dia 56 mm
PC Interface USB Interface
Bargraph Analogue Bargraph
Frequency Range 50Hz to 200Hz
Temperature Range -50°C to 1300°C
AC Voltage Range 0–100V/400V/750V
AC Current Range 0–40A/100A/400A/1000A
Active Power 0.01kW to 750kW
Apparent Power 0.01kVA to 750kVA
Reactive Power 0.01kVAR to 750kVAR
Power Factor 0.3 to 1
Phase Angle 0°to 90°
Frequency Resolution 1Hz
Active Energy 0.001kWh to 9999kWh
AC Voltage Accuracy ±1.2%
AC Current Accuracy ±2.0%
Frequency Accuracy ±0.5%
AC Voltage Resolution 0.1V
AC Current Resolution 0.1A to 1A
Certifications CAT IV 300V, CAT-III 600V, IEC 61010
