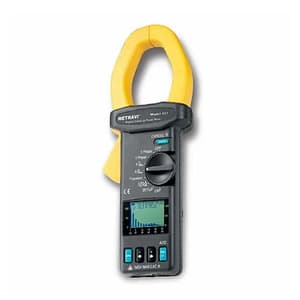

4 Digits, Dual LCD, Harmonic Analysis up to 50th Harmonic, PC Interface, Single Phase & Three Phase, Maximum Demand, KW, KVA, KVAR, KWh, KVAh, KVArH, Power Factor, Real time output of waveform, Power Parameters and Harmonics. Clamp Jaw Size – 55mm.

Features:

• Power Quality Analysis for Single and Balanced Three Phase System. Harmonic Analysis of Voltage and Current (1 to 50th order).
• True RMS measurement of V with 0.5% of reading basic accuracy.
• True RMS measurement of A with 1% of reading basic accuracy
• Graphic Waveform of Voltage and Current
• Graphic Phasor Diagram
• Transient Detection and Logging of Swell, Dip, and Outage.
• Fast peak function (39μs for 50 Hz, 33μs for 60Hz).
• Active (W, KW, HP), reactive (VAR, KVAR) and apparent (VA, KVA) power
• Power factor (PF), phase angle (Φ), and energy (WH, KWH).
• Measurement of balanced 3Φ _Power Quality.
• Programmable PT ratio from 1 to 3000
• Hold functions.
• Auto power off function in 15 minutes.
• True RMS Value (V & I)
• Maximum Demand (MD in W, KW, MW) with programmable Period
• Harmonic Analysis (V and I) to 50th Order
• Display of 25 Harmonics in one screen
• Optically isolated RS-232C Interface
• Smart Datalogging
• Graphic Phasor Diagram Capcture 129
• Transient Events
• Clamp Jaw Dia: 55mm
• Realtime Output of Waveform Power Parameters and Harmonics at command Large Dot Matrix LCD Display with Backlit.
