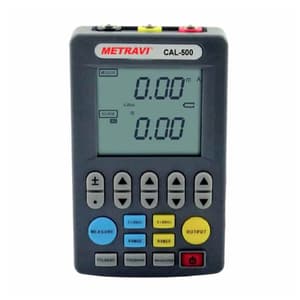

The Metravi CAL-500 Universal Calibrator has multiple signal outputs and can measure various parameters including Voltage, Current and Thermoelectric couple. With its large LCD display, Silicon keypad, easy to use operations, long service life, high accuracy and programmable output, it is widely used in Labs, various industrial fields, PLC process instruments etc., for debugging Electric and other parameters.

Hand Held, 4 Digits Large LCD Display, Measures and Provides output for 20mV / 100mV / 15V DC, Current output up to 24mA, 24V Loop Power, and outputs for K, E, J, T, R, S, B and N types of thermocouples.

Features:

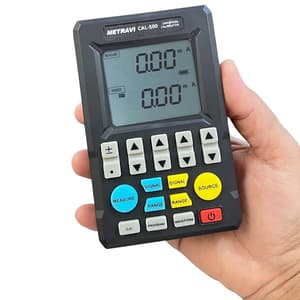

• Hand Held, Battery Operated
• Extra Large LCD Display
• Displays both output and measurements
• In the output / measurement mode following are available:
• DC Voltage: 0 – 24mV / 100mV / 15V
• DC Current: 0 – 24mA
• Step wise output of 4/8/12/16/20/24mA
• Passive Current output: 0 – 24mA

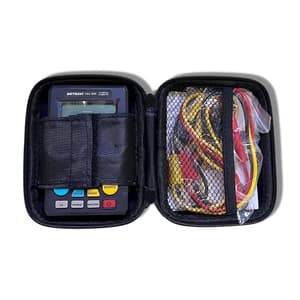

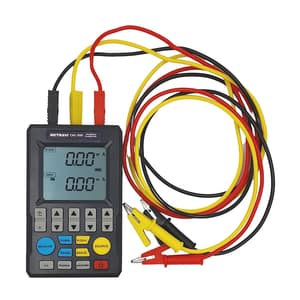

• Complete with instruction manual, testing leads and battery

Output Signal:

No.	Signal Type	Range	Accuracy	Resolution	Remarks
DC Voltage	20mV	0.00 ~ 24.00mV	±0.1%	0.01mV
	100mV	0.0 ~ 100.00mV	±0.1%	0.1mV
	V	0.00 ~ 15.00V	±0.1%	0.01V	Output : Maximum Current 30mA
DC mA	mA	0.00 ~ 24.00mA	±0.1%	0.01A	Active Current
	4 ~ 20mA	4/8/12/16/20mA	±0.1%	0.01mA
Passive Current	mA	0.00 ~ 24.00mA	±0.1%	0.01mA	Output : External Current 16·30V
Power Distribution Output	24VLOOP	24V/16V	10%	0.01V	Drive Current : 24mA
Thermocouple	K	-270 ~ 1372°C	±0.1%	1°C	Output : Above 0°C
	E	-270 ~ 1000°C	±0.1%	1°C
	J	-210 ~ 1200°C	±0.1%	1°C
	T	-270 ~ 400°C	±0.1%	1°C
	R	-50 ~ 1768°C	±0.1%	1°C
	B	0 ~ 1820°C	±0.1%	1°C
	S	-50 ~ 1768°C	±0.1%	1°C
	N	-270 ~ 1300°C	±0.1%	1°C



Measurement Signal:

No.	Signal Type	Range	Accuracy	Resolution	Remarks
DC Voltage	20mV	0.00 ~ 24.00mV	±0.1%	0.01mV
	100mV	0.0 ~ 100.00mV	±0.1%	0.1mV
	V	0.00 ~ 15.00V	±0.1%	0.01V	Output : Input Impedance 1.2MΩ
DC mA	mA	0.00 ~ 24.00mA	±0.1%	0.01A	Active Current
	4 ~ 20mA	4/8/12/16/20mA	±0.1%	0.01mA
Passive Current	mA	0.00 ~ 24.00mA	±0.1%	0.01mA
Thermocouple	K	-270 ~ 1372°C	±0.1%	1°C	Cold Junction Compensation error is not included in accuracy
	E	-270 ~ 1000°C	±0.1%	1°C
	J	-210 ~ 1200°C	±0.1%	1°C
	T	-270 ~ 400°C	±0.1%	1°C
	R	-50 ~ 1768°C	±0.1%	1°C
	B	0 ~ 1820°C	±0.1%	1°C
	S	-50 ~ 1768°C	±0.1%	1°C
	N	-270 ~ 1300°C	±0.1%	1°C
