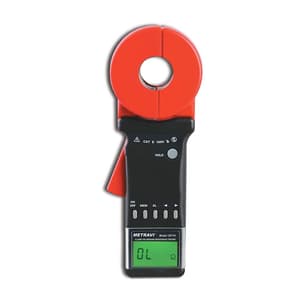

The Metravi CET-01 Clamp-on Ground Resistance Testers has:


• Self-test facility. No need to wait a long time to boot. Ready to use immediately after being switched on.
• Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology, fully intelligent.
• Handheld device, easy to carry. New design, panel operation with 6 buttons, better performance. Loud sound and light alarms; “beep—beep–beep –” alarm sound.
• Improved interference signal recognition indicator. Improved anti-jamming capability and test stability. Data storage: 99 Units. Wider range: 0.01Ω-1500Ω.
• Lower power consumption: Maximum operating current does not exceed 50mA. Are widely used for grounding resistance measurement in power, telecommunications, meteorology, oil fields, construction industries and electrical equipments.

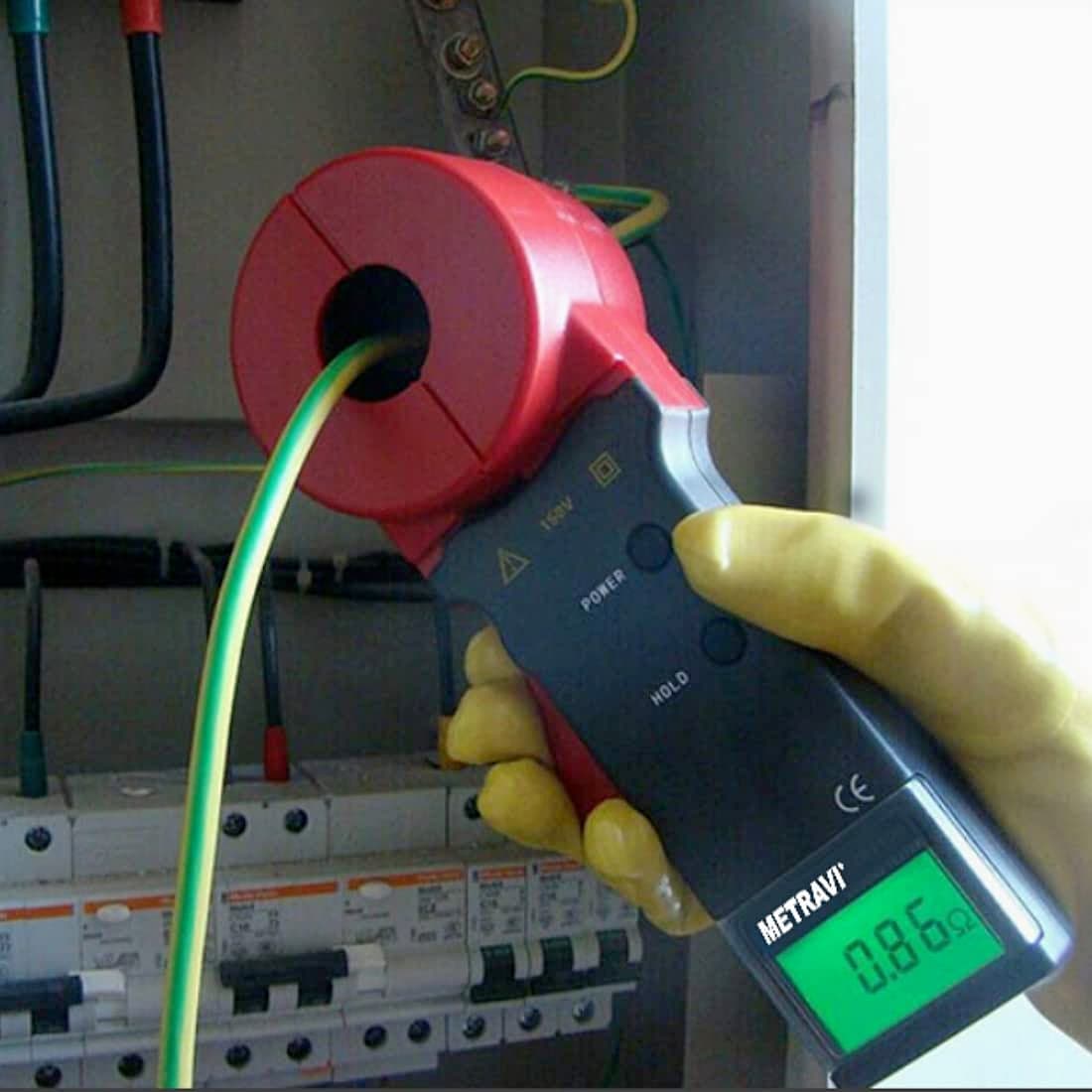

• In the measurement of a grounding system with loop current, it does not require breaking down the grounding wire and needs no auxiliary electrode.
• Safe, fast and simple to use.
• Can measure ground faults beyond the reach of traditional methods and can be applied in situations not in the range of traditional methods.
• Can measure integrated value of the grounding body resistance and the grounding lead resistance.

Features:

• Display: 4 digit Backlit LCD
• Resistance Range: 0.01Ω to 1500Ω
• Resolution: 0.01 Ohms
• Auto Ranging
• Storage of Measured Data: 99 Data
• Setting of Resistance Alarm Critical Value: 1 – 199 Ohms
• Data Hold, Auto Power Off
• Instrument safety: IEC/EN61010-1, IEC/EN6010-2-032
• Double insulation, pollution degree: class II
• Over-voltage category: CATIII 150V to ground, Max 20A Degrees of protection.
• IP30, Group III equipment as per EN 60529 Ed 92 IK04, as per EN 50102 Ed 95
• Span of Jaw : 32mm
• Battery type: 4 × 1.5V alkaline LR6 AA battery (not included)
• Low battery indication / Internal consumption: <50mA
• Auto Power Off: after 5 minutes of being idle
• Display: 4 digits 9999 counts Backlit LCD with annunciators
• Memory size: 99 Units of Reading
• Data upload interface: RS232 (Optional)
• Weighted around 1120 grams (including batteries)



 Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
