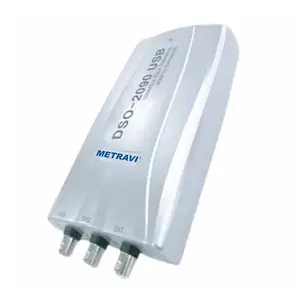

Metravi 40MHz Dual Channel PC Based Digital Storage Oscilloscope With USB PC Interface Cable & Software, DSO-2090

Shop all Metravi

SKU: ME.EL.OS.00036

Model: DSO2090

Roll over image to zoom zoom_in
  1. Metravi 40MHz Dual Channel PC Based Digital Storage Oscilloscope With USB PC Interface Cable & Software, DSO-2090
Visit Metravi Store keyboard_double_arrow_right
  • Product Type: Oscilloscopes
  • Bandwidth: 40 MHz
  • No. of Channels: Dual Channel
  • Sampling Rate: 100MS/sec
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹23721.54 (Incl. of all taxes)

₹20103+ ₹3618.54 GST (18%)

MRP ₹29563

SAVE 32%

5 Business Days

1 Pcs

90302000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Dual Channel 40MHz PC Based DSO with USB PC interface cable & software

Features:

  • Two Channel Digital Storage Oscilloscope
  • When connected to PC with USB 2.0 Interface, provides fully featured Digital Storage Oscilloscope
  • Provides extra advantage of easily storing data for future use
  • Has two independent channels.
  • The program screen emulates a conventional oscilloscope
  • The Auto Set function adjusts the settings automatically to the current signal, and the extensive trigger functions make it very simple to operate
  • The expanded spectrum analyzer windows including the FFT analysis and the multi-kinds of measurements are more powerful tools in data analysis
  • Press a button to transfer the on-screen data to an Excel file for further processing and the waveform can be recalled as a reference for comparison with the new one
  • Channels: Two + external triggering
  • Resolution 8bit
  • Plug & Play Device

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.OS.00036
Product TypeOscilloscopes
Model NoDSO2090
Bandwidth 40 MHz
No. of Channels Dual Channel
Sampling Rate 100MS/sec
Memory 64kB
Buffer Size 32K Samples
Channels 2 Channels
Accuracy ±3%
Offset Levels ±4 Divisions
Coupling AC, DC, GND
Impedence 1M Ohms
Input Protection 35Vpk (DC + peak AC, without external attenuation)
Roll Mode 1s/div to 1h/div
Range 10 divisions
Pre/Post Trigger 0% to 100%
Trigger Type Edge trigger: Rising edge, falling edge
Autoset Yes
Settability 0.03 div increments
Trigger Level ±4 divisions
