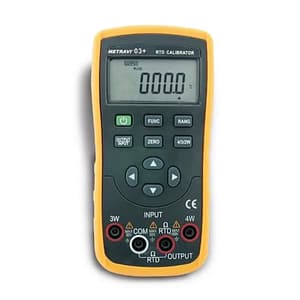

5 Digits 0.5% Accuracy, sources and measures Resistance, PT-100 Sensor and Cu-50 Sensors.

Features:

• Simulates Thermo–resistance and Resistance output
• Measures Thermo-resistance and Resistance
• °C and °F scales selectable.
• Suitable for field use.

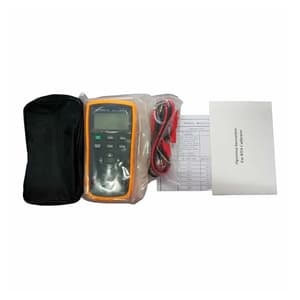

What's Included In This Package:

• User’s Manual,

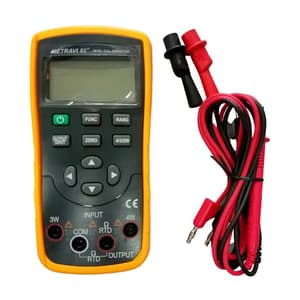

• Industrial testing lead CF-36 (clips for probe)

Technical Specifications:

• Accuracy is specified for a period of one year after calibration, at 23±5ºC, with relative humidity to 75%.
• Accuracy specifications are given as: ± ([% of reading] + [number of least significant digits]) (“Counts” refers to the number of increments or decrements of the least significant digit).

Input Function & Technical Index


Input function	Range	Output range	Resolution	Accuracy	Illustration
Resistance OHM	500Ω	0.0 ~ 500.0Ω	0.1Ω	0.05%+2	Measurement current : about 1mA Open circuit voltage : about 2.5V The accuracy does not include lead resistance
	5000Ω	0 ~ 5000Ω	1Ω	0.05%+2	Measurement current : about 1mA Open circuit voltage : about 2.5V the accuracy does not include lead resistance
Thermal resistance RTD	Cu10	-10°C ~ 250°C	0.1°C	0.05% + 6	The incentive current is set as : ±0. 5~ ±3mA When the incentive current is set as ±0.1~ 0.5mA, add an extra 0.5°C to additional error.
	Cu50	-50.0°C ~ 150.0°C
	Pt10 385	-200.0°C ~ 850.0°C
	Pt100 385	-200.0°C ~ 850.0°C
	Pt200 385	-200°C ~ 630°C			Incentive current is set as ± 0.05 ~ ±0.3mA
	Pt500 385	-200°C ~ 630°C
	Pt1000 385	-200.0°C ~ 630.0°C

Output Function & Technical Index


Output function	Range	Output range	Resolution	Accuracy	Illustration
Simulate resistance OHM	400Ω	0.0 ~ 400.0Ω	0.1Ω	0.05%+2	Incentive current is set as: ± 0.5 ~ ± 3mA When the incentive current is set as ±0.1 ~ 0.5mA, add an extra 0.1Ω to additional error. The accuracy does not include lead resistance
	4000Ω	0 ~ 4000Ω	1Ω	0.05%+2	Incentive current is set as ± 0.05 ~ ± 0.3mA The accuracy does not include lead resistance
Thermal resistance RTD	Cu10	-10°C ~ 250°C	0.1°C	0.05% + 6	Incentive current is set as ±0.5 ~ ± 3mA When the incentive current is set as ±0.1 ~ 0.5mA, add an extra 0.5°C to additional error.	Employs Pt (385) standard temperature The accuracy does not include lead resistance
	Cu50	-50.0°C ~ 150.0°C
	Pt10 385	-200.0°C ~ 850.0°C
	Pt100 385	-200.0°C ~ 850.0°C
	Pt200 385	-200.0°C ~ 850.0°C			Incentive current is set as ±0.5 ~ ± 3mA When the incentive current is set as ±0.1 ~ 0.5mA, add an extra 0.5°C to additional error.
	Pt200 385	-200°C ~ 630°C
	Pt1000 385	-200.0°C ~ 630.0°C
