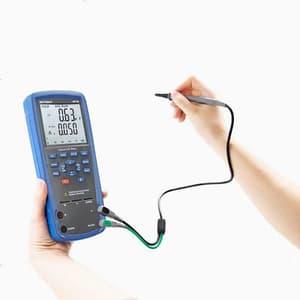

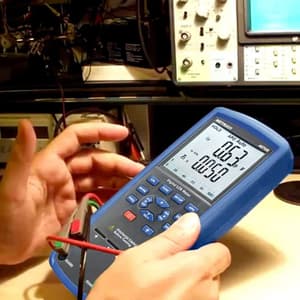

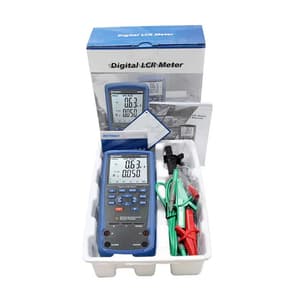

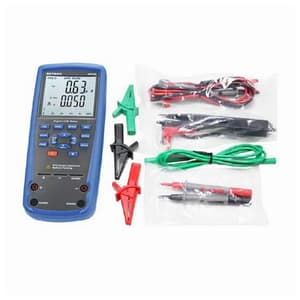

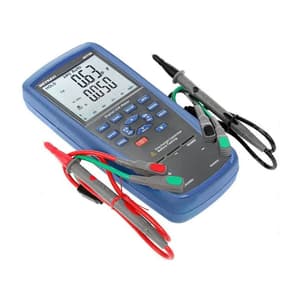

The Metravi LCR Meter 4070D features an innovative automatic selection technology, automatically measuring L,C and R with Q, D and θ by just turn on the meter. The testing frequency is up to 10kHz and it can output up to 100kHz test frequency.

It provides high accuracy with four or five terminal Kelvin measurements. 4-1/2 Digits, Dual LCD, Auto LCR / DCR / D/ Q / ESR / Phase Angle, variable frequency output of 100Hz / 120Hz / 1kHz / 10kHz / 100kHz.

Features:

• Data Hold
• Dual Backlit LCD display
• Auto LCR smart check and measurement
• Series/Parallel modes are selectable
• Ls/Lp/Cs/Cp with D/Q/ θ/ESR parameters
• Support DCR mode 200.00Ω~200.0MΩ
• Five different test frequency are available: 100/120/1k/10k/100k Hz
• Test AC signal level: 0.6mVRMS typ.
• Test range: (ex. F=1kHz)
• L: 200.00 μH ~ 2000.0 H
• C: 2000.0 pF ~ 2.000 Mf
• R: 20.000 Ω ~ 200.0 MΩ
• Multi-level battery voltage detector
• Support Backlight & Buzzer sound driver
• Parameters displayed: DC Resistance, Serial Inductance, Parallel Inductance, Serial Capacitance, Parallel Capacitance, Serial Resistance, Parallel Resistance, Phase Angle, Equivalence Serial Resistance, Dissipation Factor, Quality Factor
