Black Body Source for Calibrating Infrared Thermometers from 50 to 500 Degree C. The B-500 Portable IR Calibrator is used for calibrating long distance Infrared Thermometers, which are designed as handheld and need small calibrations. Whether you’re using in-line or handheld infrared pyrometers, you need a high performance calibration standard to verify accuracy.

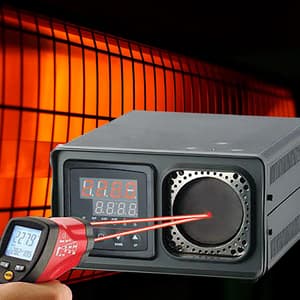

The portable IR Calibrator provides a stable black body target for calibrating non-contact IR thermometers up to 500°C. The portable IR calibrator features a large temperature-controlled blackbody target with a diameter of 2.25’’ (57mm), which offers a wide field of view area for optical variations in IR thermometers.
With an emissivity of 0.95, the isothermal target can be controlled in set-point increments of 0.1° from 50°C to 500°C. For even higher precision, a contact calibration well is located directly behind the blackbody surface. Using an optional digital RTD thermometer and calibrated secondary probe, accuracies of 0.1°C can be achieved.

Features:

• Black Body is used to calibrate infrared thermometers
• Easily certify infrared thermometers up to 500°C (932°F)
• RTD Reference Well for high precision
• Small compact design
• Temperature Range : 50°C ~ 500°C (122°F ~ 932°F)
• Accuracy: ±0.5°C @ 100°C ( ±1.0°F @ 212°F) / ±0.8°C @ 500°C ( ±1.4°F @ 932°F)
• Stability: ±0.1°C @ 100°C ( ±0.2°F @ 212°F) / ±0.3°C @ 500°C ( ±0.5°F @ 932°F)
• Power : 220VAC(±10%), 1.25A / 110VAC(±10%),2.5A
• Complete with carrying case and instruction manual

Environmental Conditions:

Although the instrument has been designed for optimum durability and trouble-free operation, it must be handled with care. The instrument should not be operated in an excessively dusty or dirty environment. Maintenance and cleaning recommendations can be be found in the Maintenance section of this manual. The instrument operates safety under the following conditions:


• Temperature range: 5-35°C (41-95°F)
• Ambient relative humidity: 15-80%
• Pressure: 75kPa - 106kPa
• Mains voltage within:10% of nominal
• Vibrations in the calibration environment should be minimized
