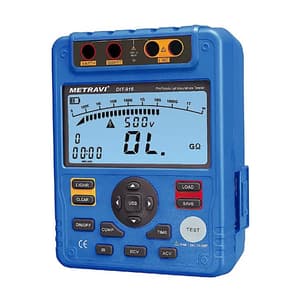

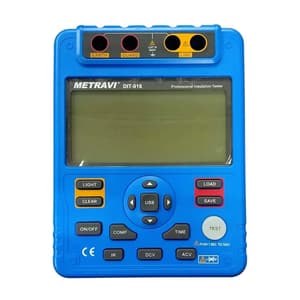

Digital Insulation Tester for 500V / 1000V / 2500V / 5000V & 1T.Ohms with USB PC Interface cable and software.

Features:

• Test insulation of wires, cables, transformers, motors, surge arrestors and generators
• Selectable testing voltages – one testing instrument for low and high voltage systems from 500/1000/2500 and 5000V
• Insulation resistance measurement up to 1T Ω
• User selectable programmable timer (10s to 30 min)
• Automatic discharge of test object after completion of measurement
• Diagnostic tools
• Polarization index (PI)
• Dielectric absorption ratio (DAR)
• USB PC Interface
• Comparison feature to set pass/fail thresholds for quick measurement and verification
• Dual power source – receptacle or batteries
• Built in internal memory storing 18 measurements

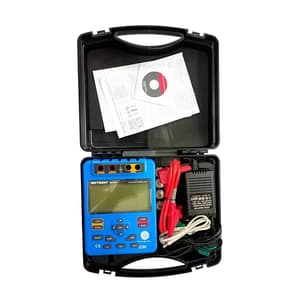

• Comes as a complete kit: power adapter, software, USB interface cable, hard carrying case, batteries, complete set of test leads, and instruction manual
• CAT III 600V
• Confir cmes to: IEC 61010 CAT.III 600V overvoltage and double insutation standard
• Display (LCD) : Digital : 9999 counts Analog bar graph
• Display Backlight : Bright Backlight for clear readings in poorly lighted areas
• Computer Connection : Via USB interface
• Data Logging and Recall : 18 sets
• Auto Range : The meter automatically selects best range
• Warning : Displayed on the instrument
• Test Voltage : Automatically source the voltage
• COMP Measurement : Used for Compare function to set a pass/fail compare level for the insulation measurement
• PI Measurement : Polarization Index is the ratio of insulation resistance. Preset the time for two points and the Meter will carry out the measurement automatically
• Time : To carry out measurement by setting a specificed time within 15 minutes
• Over Loading : Display OL on insulation resistance range
• Battery Indicator : Low Battery indication
• Battery type : 8pcs of 1.5V (LR14) batteries or power adaptor (input voltage 230V, 50/60Hz, 150mA, input DC15V, 1.0A)Power adaptor is optionally at extra cost
