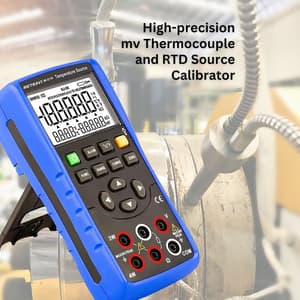

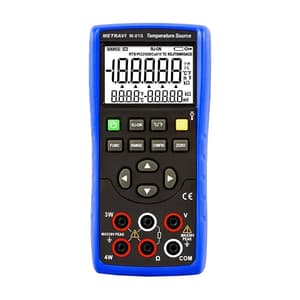

The Metravi M-01S mV Thermocouple & RTD Source Calibrator features a basic accuracy of 0.05% and a 5 digits display for nmeasured value. With a resolution of 0.1°C and the output unit can be converted between °C and °F. It features 8 types of analogue output (R/S/K/E/J/T/B/N) for thermocouple. DCV output provides extra range for temperature output. The phase compensation of output make it possible for instrument to drive a load with capacitance up to 2000μf, matching for applications with the filter of large capacitance at the input terminal.

It also features 7 types of thermistor outputs (Cu50, PT100, PT200, PT500, PT1000). Resistor output provides extra range of temperature output. The response time of current input is less than 5ms. It can be used as the signal source of instruments with pulse input (such as DCS, PLC temperature detector) and secondary instruments. Temperature compensation with high accuracy at the cold terminal is designed for the thermocouple output. Also comes with adjustable output gain, is easy in operation, has built-in self-tests with closed-case calibration (no internal calibration adjustment).

Features:

• Analogue output.
• Output for DC Voltage DCV, Resistance OHM, Thermocouple TC, Thermal Resistance RTD Source.
• Output temperature value and the corresponding temperature signal are displayed simultaneously.
• Built-in high-precision temperature sensor for high-precision cold-end compensation.
• Thermocouple cold-end compensation can be set, including manual compensation, automatic compensation, compensation access disconnection, etc.
• Auto power-off.
• The segment code is displayed on the LCD with a white backlight.
• LED flashlight.
• Powered by 3 AA battery cells. The battery compartment door is convenient for battery replacement. Low-battery indication.
• Compact, firm, reliable, suitable for field use.

Specification:

• DC Voltage: -10.000mV~110.00mV-0.1000V~1.1000V
• Accuracy: 0.05%+0.03mV / 0.05%+0.3mV
• Resolution: 0.01mV / 0.0001V
• Resistance: 0~400.0Ω / 0~4.000KΩ
• Accuracy: 0.05%+0.2Ω / 0.05%+2Ω
• Resolution: 0.1Ω / 1Ω
• R-type Thermocouple Range: 0°C~1767°C
• S-type Thermocouple Range: 0°C~1767°C
• K-type Thermocouple Range: -200.0°C~1372.0°C
• E-type Thermocouple Range: -200.0°C~1000.0°C
• J-type Thermocouple Range: -200.0°C~1200.0°C
• T-type Thermocouple Range: -250.0°C~400.0°C
• N-type Thermocouple Range: -200.0°C~1300.0°C
• B-type Thermocouple Range: 600°C~1820°C
• A-type Thermocouple Range: 0°C~2500°C
• C-type Thermocouple Range: 0°C~2310°C
• D-type Thermocouple Range: 0°C~2310°C

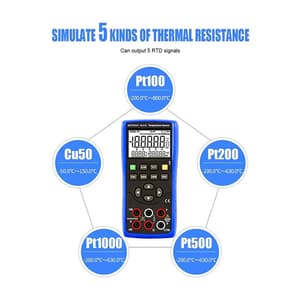

• Thermal Resistance PT100: -200.0°C~800.0°C
• Thermal Resistance PT200: -200.0°C~630.0°C
• Thermal Resistance PT500: -200.0°C~630.0°C
• Thermal Resistance PT1000: -200.0°C~630.0°C
• Thermal Resistance Cu50: -50.0°C~150.0°C

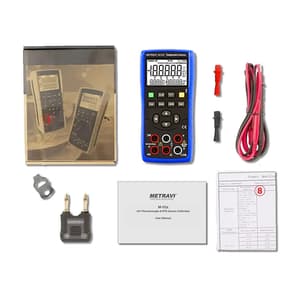

Package Content:

• 1 pair Industrial test leads
• 3 units AA alkaline battery
• Thermocouple Adapter

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
