Metravi 6000 Count / 1000A Digital TRMS AC Clamp Meter With IR Thermometer, PRO IRC-600

Shop all Metravi

SKU: ME.EL.CL.00127

Model: PROIRC600

Roll over image to zoom zoom_in
  1. Metravi 6000 Count / 1000A Digital TRMS AC Clamp Meter With IR Thermometer, PRO IRC-600
  2. Metravi 6000 Count / 1000A Digital TRMS AC Clamp Meter With IR Thermometer, PRO IRC-600
  3. Metravi 6000 Count / 1000A Digital TRMS AC Clamp Meter With IR Thermometer, PRO IRC-600
  4. Metravi 6000 Count / 1000A Digital TRMS AC Clamp Meter With IR Thermometer, PRO IRC-600
  5. Metravi 6000 Count / 1000A Digital TRMS AC Clamp Meter With IR Thermometer, PRO IRC-600
  6. Metravi 6000 Count / 1000A Digital TRMS AC Clamp Meter With IR Thermometer, PRO IRC-600

  • Product Type: Clamp Meters
  • Jaw Size: 33 mm
  • AC Voltage: 1000V, 600V, 60V, 6V
  • AC Current: 600A, 60A
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

8969.18 (Incl. of all taxes)

7601+ ₹1368.18 GST (18%)

MRP ₹11178

SAVE 32%



5 Business Days

1 Set

90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

The Metravi PRO IRC-600 Digital TRMS AC Clamp Meter with Infrared Thermometer provides fast A/D converting sampling time, high accuracy, TRMS measurements and also offers all needed features for measurements, including Non-contact Voltage Detector and a built-in Infrared Thermometer!

The Metravi PRO IRC-600 Digital TRMS AC Clamp Meter with Infrared Thermometer has a modern body with double-moulded housing and 33mm jaws designed for perfect handhold and tight place testing. A clear backlit 6000 Counts LCD with reverse display is easy to see and a handy data hold keeps measurements on the display.


Features:

  • Accuracy: ±(0.8% + 4 digits)
  • TRMS AC Voltage: 6V / 60 / 600 / 1000V
  • Accuracy: ±(1.5% + 5 digits)
  • TRMS AC Current: 60A / 600A
  • Accuracy: ±(2.5% + 10 digits)
  • Resistance: 600Ω / 6kΩ / 60 / 600/ 6MΩ / 60MΩ
  • Accuracy: ±(1.5% + 6 digits)
  • K-type Temperature: 1000ºC/ 1832ºF
  • Accuracy: ±(1.0%+3d)
  • Infrared Temperature: -30 ~ 350 ºC/ -22 ~662ºF
  • Accuracy: ±1.5%±1ºC/1.8°F
  • IR Optical Resolution / Distance to Sighting Ratio: 4:1
  • Accuracy: ±(4% + 6 digits)
  • Frequency: 10kHz
  • Accuracy: ±(1.5% + 6 digits)
  • Continuity: Buzzer sounds at 50
  • Diode Test: Test Current <0.5mA MAX 3V
  • Battery Savers: Low Battery indication, Auto Power Off
  • NCV (Non-contact Voltage Detection)
  • Safety: Double-moulded housing, CATIII 1000V, CATIV 600V, Pollution Degree 2

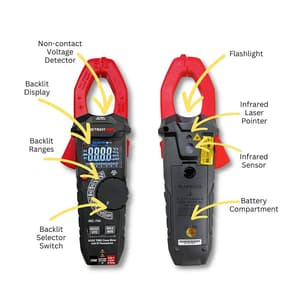

Features For Dark Environments:

  • Backlit LCD display
  • Backlit Rotary range pointer/selector
  • Backlit Ranges
  • Flashlight

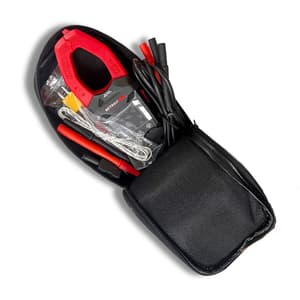

Package Content:

  • Carrying Case
  • Silicon Test Leads
  • K-type Thermocouple
  • Thermocouple Adaptor
  • User Manual, Batteries


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.EL.CL.00127
Product TypeClamp Meters
Model NoPROIRC600
Display LCD, 6000 Counts, Backlit
Jaw Size 33 mm
Colour Black-Red
AC Voltage 1000V, 600V, 60V, 6V
AC Current 600A, 60A
Data Hold Yes
Flashlight Yes
Battery Capacity 1.5V
Battery Type AAA
Battery Savers Auto Power Off, Automatic Shutdown After 15 mins of Non-operation, Low Battery indication
Certifications Pollution Degree 2, CATIII 1000V, CATIV 600V, Double-moulded housing
Power Source Battery Operated
Resistance Range 600k, 600, 60k, 60M, 6k, 6M Ohms
Capacitance Range 9.999mF, 9.999µF, 99.99mF, 99.99µF, 999.9nF, 999.9µF
Frequency Range 5 to 9.999Hz, 9.999kHz, 99.99Hz, 999.9Hz
Diode Test Test current of 0.3mA typical; Open circuit voltage 3.2V DC typical.
Continuity Check Threshold <50 Ohms; Test current <0.5mA
Low Pass Filter VFD Measurements
Measurements Rate 2 per second, Nominal =10M Ohms (VDC and VAC)
AC Voltage Bandwidth 50 to 1000Hz (VAC)
Operating Temperature 5 to 40°C (41 to 104°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Over Voltage CAT III 1000V, CAT IV 600V
