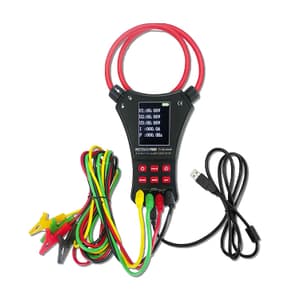

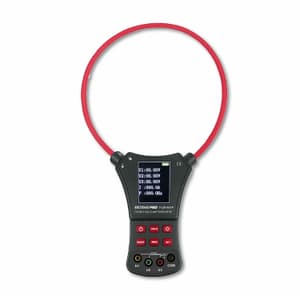

The Metravi Pro FCM-900P Flexible Coil Clamp-on Power Meter is a multi functional, digital and intelligent instrument, which is especially designed & manufactured for field measurement of three phase AC Voltage, Current, Leakage Current, Phase between Voltage, Phase between Voltage and Current, Frequency, Phase Sequence, Electric Energy, Active Power, Reactive Power, Apparent Power, Power Factor and Total Power and so on. It is very convenient to use and fully compatible with the functions of a large-caliber clamp/leakage current meter, as well as a micro power clamp meter. It is widely used to check transformer connection grouping, capacitive circuits, reading out phase relationships with every group, check if watt hour meter wiring is correctly done or not, maintain line equipment, etc., as well as providing a safe, accurate and convenient meter for the electricity inspection officers.

Features:

• Adopts advanced Rogowski Coil technology
• No hysteresis effect
• Almost zero phase error
• No magnetic saturation
• High linearity and strong anti interference ability
• Measured current ranges from milliamperes up to ten thousands of amperes
• Safe and reliable
• Small size, light weight, soft and flexible, suitable for narrow environments and flat cable dense places
• High measurement accuracy
• Strong reliability and wide response
• USB communication port
• Can store data and using system software, upload the stored data to the computer
• Read, query, save, print and other functions of historical data
• Backlit display
• Measurement Method: Flexible CT – the output signal is the differential of the current against time. By integrating the output voltage signal, the input current can be truly restored
• Conductor Position: Detected conductor is in the centre position of the clamp.
• Data Hold: Data hold function: “HOLD” symbol display
• Overflow Display: Exceed measure range overflow function: “OL” symbol display
• Automatic Shutdown: 15 minutes after power on, it will power off automatically without any operation to reduce the power consumption
• Battery Voltage: Low Battery Indication

Accuracy:

• AC Voltage: ±0.5%Fs
• AC Current: ±0.5%Fs
• Frequency: ±0.5Hz
• Power Factor: ±0.5%Fs
• Phase Angle: ±0.5°C
• Electric Energy & Active Power: ±1%Fs
• Reactive Power: 0.01var
• Apparent Power:
