Metravi 60MHz Oscilloscope Probe, OP-60
Roll over image to zoom zoom_in
- Weight: 55 Grams
- Product Type: Probes & Accessories
- Bandwidth: 60MHz
- Rise Time: 5.8ns
- Attenuation Ratio: 1X&10X
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹866.12 (Incl. of all taxes)
₹734+ ₹132.12 GST (18%)
MRP ₹1080
SAVE 32%
5 Business Days
1 Pcs
90308990
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

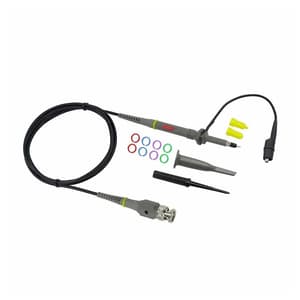

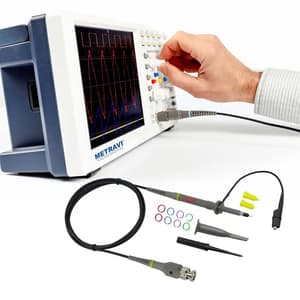

OP-60 is a x 1 / x 10 attenuation modular probe designed to be used with 60MHz oscilloscopes with an input impedance of 1MΩ.
The Probe Consists of Separate Parts:- BNC Male Connector and compensation box
- Probe body tip with R. C. assemblies
- Approx. 1.1m cable
Features:
- Operation Temperature -10°C~+55°C
- Humidity -40°C or below <90%, +41°C to +50°C ≤60%
- Altitude Operating 3000m Non-operating 15000m
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.PR.00087 |
|---|---|
| Product Type | Probes & Accessories |
| Model No | OP60 |
| Bandwidth | 60MHz |
| Rise Time | 5.8ns |
| Attenuation Ratio | 1X&10X |
| Input Resistance | 1MW/10MW±2% |
| Input Capacitance | 10X:14~18pF, 1X:70pF~120pF |
| Max. input voltage | 10X:300V RMS CAT II, 1X:150V RMS CATII |
| Compensation Range | 15~45pF |
| Cable Length | 110±2cm |
| Safety Standards | IEC61010-031 |
