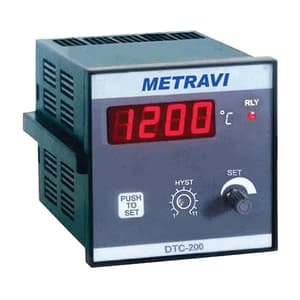

Metravi 96 x 96 mm Single Channel Temperature Controller With 1NO + 1NC, DTC-200
Roll over image to zoom zoom_in
- Product Type: Temperature Controllers & Indicators
- Display: LED display 3-1/2 Digits
- Sizes : 96 x 96 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2762.38 (Incl. of all taxes)
₹2341+ ₹421.38 GST (18%)
MRP ₹3443
SAVE 32%
5 Business Days
1 Pcs
90251920
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
96 mm sq, with 1NO + 1NC, Single Set Point, for K, J, R, S, PT-100 (Any One)
Features:
- Flush Mounting type
- Sizes 96 x 96 mm sq ‘OR’ 72 x 72 mm sq
- Display 3-1/2 Digits Seven Segment Red / LED display
- Cold Junction Compensation Automatic for thermocouple
- Open Sensor Indication
- Sensor Input J, K, R, S, T/C, PT-100 RTD, V & 4 – 20mA
- Accuracy J,K 1%; R,S 0.5%; PT-100 RTD0.2%, mV, V,mA 0.1%
- Hysteresis Pot 1 to 10°C for each point for ON – OFF Model
- Control Action ON/OFF or Time Proportional
- Single Set Point
- Auxiliary Power Supply 230V Single Phase AC 50Hz
Control output (Options Available):
- 6A or 20A, 1C/O Relay, 230V.
- 12V DC pulse output for SSR for each set point
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | EL.IN.TE.00001 |
|---|---|
| Product Type | Temperature Controllers & Indicators |
| Model No | DTC200 |
| Display | LED display 3-1/2 Digits |
| Sizes | 96 x 96 mm |
