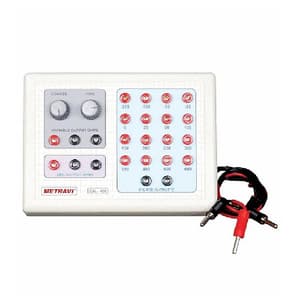

Bench type RTD Calibrator, Outputs availble at -200, -100, -50, -25, 0, 25, 50, 100, 150, 200, 300, 400, 500, 600 °C. RTD-CAL-408 Calibrator is useful for calibration & testing of all instruments having RTD input, like Digital Temp. Indicator, Controller, PID, Scanner, Transmitters etc.

Features:

• Portable type
• 14 Fixed range Selectable Outputs
• Outputs available at : -200, -100, -50, -25, 0, 25, 50, 100, 150, 200, 300, 400, 500, 600°C
• Accuracy : ±0.05% Ohm of FSR
• Compensation : Long Wire Compensation of 100m. sensor cable

RTD Output / Fix Range Output:

• To get fix range O/P -200 to +600 °C
• Fix range output, Corresponding output you will get from RTD O/P Terminal in OHMS

O/P selection : RTD O/P & RTD LWC O/P

Fix Range O/P	-200, -100, -50, -25, 0, +25, 50, 100, 150, 200, 250, 300, 350, 400, 500, 600°C
Accuracy	± 0.05%
Box size	133 mm X 188 mm

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
