Mitutoyo 0 - 0.125 inch Dial Indicator with Lug Back, 1506A
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Type of Product: Dial Indicator
- Range (Inches): 0 - 0.125 inch
- Graduation (inch): 0.0005 inch
- Dial Reading: 0-50
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,036 (Incl. of all taxes)
₹5,963 + ₹1,073 GST (18%)
MRP was MRP ₹7,950
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- The advanced stem-bush mechanism enables secure clamping with an extended adjustment range.
- Solid frame construction without through-holes provides superior protection against dust ingress.
- Enhanced structural stiffness in the bearing plate helps minimize tracing inaccuracies.

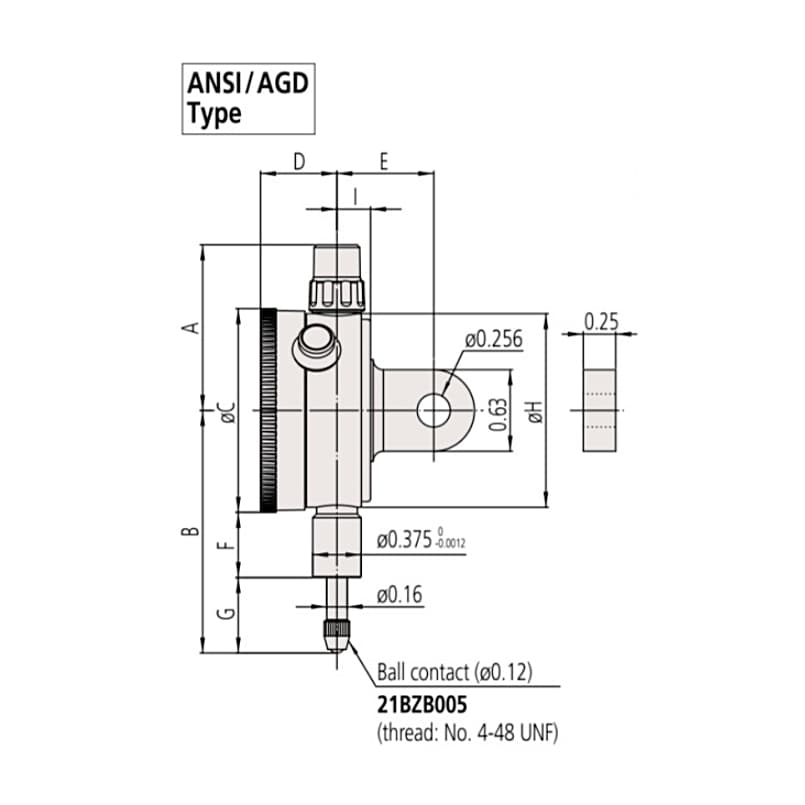

Dimension Measurement (inch):
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (Inches) | 0 - 0.125 inch |
| Rev (inch) | 0.05 inch |
| Graduation (inch) | 0.0005 inch |
| Accuracy (inch) | ±0.0005 inch (1 rev / 2.5 rev) |
| Accuracy Retrace (inch) | 0.00016 inch |
| Repeatability | ±0.0001 inch |
| Dial Reading | 0-50 |
| Measuring Force (N) | 1.4 or less |
