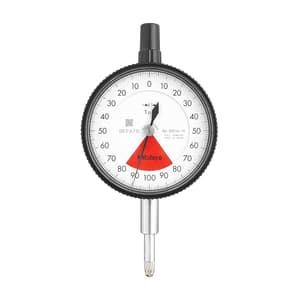

• Balanced Scale, One Revolution, Shockproof & Jeweled bearing
• Mitutoyo's unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact.
• This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions.
• The bezel clamp and lifting lever (optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
• The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
• A carbide contact point is used.
• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
• The dead zone in red indicates "accuracy not guaranteed."

Dimension Measurement (mm)

A: 47.2 mm B: 66.1 mm C: 57 mm D: 18.1 mm E: 60 mm F: 16.9 mm G: 20.7 mm H: 52 mm I: 7.6 mm
