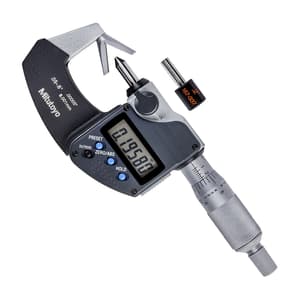

Mitutoyo 0.05 - 0.6 inch Digital V-Anvil Micrometer without Groove (3 Flute), 314-361-30

Shop all Mitutoyo

SKU: ME.MI.VA.00048

Model: 314-361-30

Roll over image to zoom zoom_in
  1. Mitutoyo 0.05 - 0.6 inch Digital V-Anvil Micrometer without Groove (3 Flute), 314-361-30
  2. Mitutoyo 0.05 - 0.6 inch Digital V-Anvil Micrometer without Groove (3 Flute), 314-361-30
  3. Mitutoyo 0.05 - 0.6 inch Digital V-Anvil Micrometer without Groove (3 Flute), 314-361-30
Visit Mitutoyo Store keyboard_double_arrow_right
  • Weight: 275 Grams
  • Product Type: V-Anvil Micrometer
  • Range (Inches): 0.05 - 0.6 inch
  • Flutes: 3
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹37657.34 (Incl. of all taxes)

₹31913+ ₹5744.34 GST (18%)

MRP ₹42550

SAVE 25%

3 Business Days

1 Pcs

90173010

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

This Digimatic V-Anvil Micrometer helps you to measure cutting tools & taps.


Features:

  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.


Functions:

  • 2 x PRESET
  • ZERO/ABS
  • Auto Power OFF after 20 min. non use
  • Function lock
  • HOLD
  • Low-voltage alarm

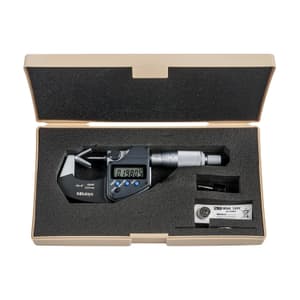

Package Content:

  • Digital V-Anvil Micrometer
  • Spanner
  • Setting Standard
  • 1x SR44 Battery

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUME.MI.VA.00048
Product TypeV-Anvil Micrometer
Model No314-361-30
Range (Inches) 0.05 - 0.6 inch
Flutes 3
Resolution 0.00005 inch / 0.001 mm
Max. Permissible Error (JMPE) ±0.0002 inch
Anvil 60 Degree (Without Groove)
Measuring Force 5 - 10
Measuring Spindle With Spindle Lock ø6.35 mm & Spindle Pitch 0.75 mm
Scale Finishing Thimble & Sleeve Satin Chrome Finish, ø18 mm
Setting Standard 167-337 ø0.2 inch
Display LCD, Character Height 7.5 mm
Power Supply 1x Battery SR-44
