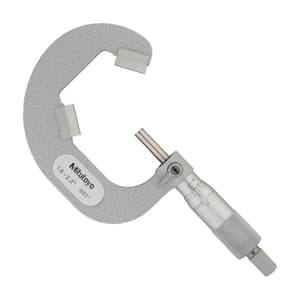

Mitutoyo 1.6 - 2.2 inch V-Anvil Micrometer with Carbide Tip (3 Flute), 114-114
Roll over image to zoom zoom_in
- Weight: 465 Grams
- Product Type: V-Anvil Micrometer
- Range (Inches): 1.6 - 2.2 inch
- Flutes: 3
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹28506.44 (Incl. of all taxes)
₹24158+ ₹4348.44 GST (18%)
MRP ₹32210
SAVE 25%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
A Mitutoyo non-digital micrometer provided with a V-shaped anvil to enable measurement of 3-flute cutting tools, such as taps and reamers. A ratchet stop guarantees repeatable measurement.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures the outer diameter of cutting tools (as taps, reamers, end mills) have three or five flutes.
- With ratchet stop for constant
- V anvils with a Centreline Groove is available.
- These are useful for the measurement of pitch diameter of taps, the of the single-wire Style makes these three or five flutes.
Package Content:
- V-Anvil Micrometer
- Spanner
- Setting Standard
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.VA.00027 |
|---|---|
| Product Type | V-Anvil Micrometer |
| Model No | 114-114 |
| Range (Inches) | 1.6 - 2.2 inch |
| Flutes | 3 |
| Graduation (inch) | 0.001 inch |
| Max. Permissible Error (JMPE) | ±0.0003 inch |
| Anvil | 60 Degree (Without Groove) |
| Measuring Force | 5 - 10 |
| Measuring Spindle | With Spindle Lock ø6.35 mm & Spindle Pitch 0.75 mm |
| Scale Finishing | Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| Setting Standard | 167-340 ø1.6 inch |
